Abstract register controller. More...

#include <cutehmi/modbus/AbstractRegisterController.hpp>

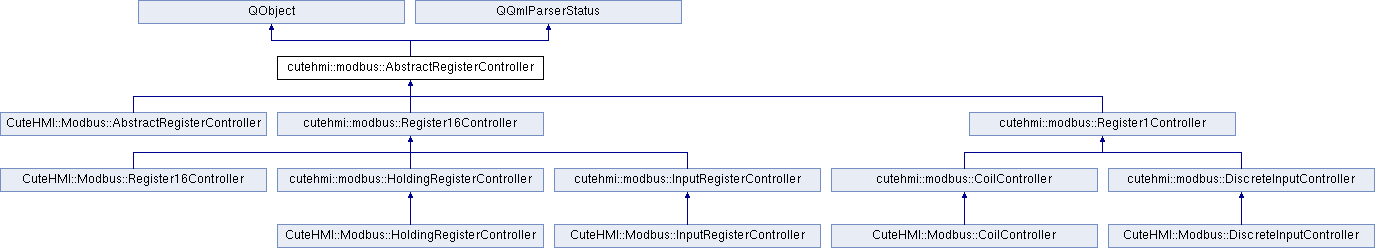

Inheritance diagram for cutehmi::modbus::AbstractRegisterController:

Public Types
enum	WriteMode { WRITE_DELAYED , WRITE_POSTPONED , WRITE_IMMEDIATE , WRITE_EXPLICIT }
	Write mode enum. More...

Signals
void	deviceChanged ()

void	addressChanged ()

void	busyChanged ()

void	readOnWriteChanged ()

void	writeModeChanged ()

void	writeDelayChanged ()

void	enabledChanged ()

Public Member Functions
	AbstractRegisterController (QObject *parent=nullptr)

AbstractDevice *	device () const

void	setDevice (AbstractDevice *device)

unsigned int	address () const

void	setAddress (unsigned int address)

bool	busy () const

bool	readOnWrite () const

void	setReadOnWrite (bool readOnWrite)

WriteMode	writeMode () const

void	setWriteMode (WriteMode writeMode)

int	writeDelay () const

void	setWriteDelay (int writeDelay)

bool	enabled () const

void	setEnabled (bool enabled)

Public Member Functions inherited from QObject
virtual const QMetaObject *	metaObject () const const

	QObject (QObject *parent)

virtual	~QObject ()

virtual bool	event (QEvent *e)

virtual bool	eventFilter (QObject watched, QEvent event)

QString	objectName () const const

void	setObjectName (const QString &name)

bool	isWidgetType () const const

bool	isWindowType () const const

bool	signalsBlocked () const const

bool	blockSignals (bool block)

QThread *	thread () const const

void	moveToThread (QThread *targetThread)

int	startTimer (int interval, Qt::TimerType timerType)

int	startTimer (std::chrono::milliseconds time, Qt::TimerType timerType)

void	killTimer (int id)

T	findChild (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegExp &regExp, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegularExpression &re, Qt::FindChildOptions options) const const

const QObjectList &	children () const const

void	setParent (QObject *parent)

void	installEventFilter (QObject *filterObj)

void	removeEventFilter (QObject *obj)

QMetaObject::Connection	connect (const QObject sender, const char signal, const char *method, Qt::ConnectionType type) const const

bool	disconnect (const char signal, const QObject receiver, const char *method) const const

bool	disconnect (const QObject receiver, const char method) const const

void	dumpObjectTree ()

void	dumpObjectInfo ()

void	dumpObjectTree () const const

void	dumpObjectInfo () const const

bool	setProperty (const char *name, const QVariant &value)

QVariant	property (const char *name) const const

QList< QByteArray >	dynamicPropertyNames () const const

void	destroyed (QObject *obj)

void	objectNameChanged (const QString &objectName)

QObject *	parent () const const

bool	inherits (const char *className) const const

void	deleteLater ()

	Q_DISABLE_COPY (Class)

	Q_DISABLE_MOVE (Class)

	Q_DISABLE_COPY_MOVE (Class)

T	qobject_cast (QObject *object)

T	qobject_cast (const QObject *object)

T	qFindChild (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QRegExp &regExp)

	Q_CLASSINFO (Name, Value)

	Q_INTERFACES (...)

	Q_PROPERTY (...)

	Q_ENUMS (...)

	Q_FLAGS (...)

	Q_ENUM (...)

	Q_FLAG (...)

	Q_ENUM_NS (...)

	Q_FLAG_NS (...)

	Q_OBJECT Q_OBJECT

	Q_GADGET Q_GADGET

	Q_NAMESPACE Q_NAMESPACE

	Q_NAMESPACE_EXPORT (EXPORT_MACRO)

	Q_SIGNALS Q_SIGNALS

	Q_SIGNAL Q_SIGNAL

	Q_SLOTS Q_SLOTS

	Q_SLOT Q_SLOT

	Q_EMIT Q_EMIT

	Q_INVOKABLE Q_INVOKABLE

	Q_REVISION Q_REVISION

	Q_SET_OBJECT_NAME (Object)

	QT_NO_NARROWING_CONVERSIONS_IN_CONNECT QT_NO_NARROWING_CONVERSIONS_IN_CONNECT

virtual void	classBegin ()=0

virtual void	componentComplete ()=0

Static Public Attributes
static constexpr unsigned int	INITIAL_ADDRESS = 0

static constexpr WriteMode	INITIAL_WRITE_MODE = WRITE_DELAYED

static constexpr int	INITIAL_WRITE_DELAY = 500

static constexpr bool	INITIAL_BUSY = true

static constexpr bool	INITIAL_READ_ON_WRITE = true

static constexpr bool	INITIAL_ENABLED = true

Protected Slots
virtual void	onRequestCompleted (QJsonObject request, QJsonObject reply)=0

Protected Member Functions
virtual void	requestReadRegisters (quint16 address, quint16 amount, QUuid *requestId) const =0

virtual quint16	bytes () const =0

virtual void	onDeviceDestroyed ()=0

void	classBegin () override

void	componentComplete () override

void	setBusy (bool busy)

Protected Member Functions inherited from QObject
QObject *	sender () const const

int	senderSignalIndex () const const

int	receivers (const char *signal) const const

bool	isSignalConnected (const QMetaMethod &signal) const const

virtual void	timerEvent (QTimerEvent *event)

virtual void	childEvent (QChildEvent *event)

virtual void	customEvent (QEvent *event)

virtual void	connectNotify (const QMetaMethod &signal)

virtual void	disconnectNotify (const QMetaMethod &signal)

Properties
cutehmi::modbus::AbstractDevice *	device
	Device associated with controller. More...

unsigned int	address
	Register address. More...

bool	busy
	Busy status. More...

bool	readOnWrite
	Read-on-write. More...

WriteMode	writeMode
	Write mode. More...

int	writeDelay
	Write delay [ms]. More...

bool	enabled
	Determines whether controller is enabled. More...

Properties inherited from QObject
	objectName

Additional Inherited Members
Static Public Member Functions inherited from QObject
QString	tr (const char sourceText, const char disambiguation, int n)

QString	trUtf8 (const char sourceText, const char disambiguation, int n)

QMetaObject::Connection	connect (const QObject sender, const char signal, const QObject receiver, const char method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject *sender, PointerToMemberFunction signal, Functor functor)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject context, Functor functor, Qt::ConnectionType type)

bool	disconnect (const QObject sender, const char signal, const QObject receiver, const char method)

bool	disconnect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method)

bool	disconnect (const QMetaObject::Connection &connection)

bool	disconnect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method)

Public Attributes inherited from QObject
typedef	QObjectList

Detailed Description

Abstract register controller.

Member Enumeration Documentation

◆ WriteMode

enum cutehmi::modbus::AbstractRegisterController::WriteMode

Write mode enum.

Enumerator
WRITE_DELAYED	Writes are delayed. Write will be requested after amount of time specified by writeDelay property has passed.
WRITE_POSTPONED	Writes are postponed, which means that write will not be requested until previous write has finished.
WRITE_IMMEDIATE	Writes are requested immediately, which may creates a queue of pending writes if they are not proceeded fast enough.
WRITE_EXPLICIT	Writes are explicit, i.e. write requires an explicit call to write value function.

Constructor & Destructor Documentation

◆ AbstractRegisterController()

cutehmi::modbus::AbstractRegisterController::AbstractRegisterController ( QObject * parent = nullptr )

Member Function Documentation

◆ address()

unsigned int cutehmi::modbus::AbstractRegisterController::address ( ) const

◆ addressChanged

void cutehmi::modbus::AbstractRegisterController::addressChanged ( )

signal

◆ busy()

bool cutehmi::modbus::AbstractRegisterController::busy ( ) const

◆ busyChanged

void cutehmi::modbus::AbstractRegisterController::busyChanged ( )

signal

◆ bytes()

virtual quint16 cutehmi::modbus::AbstractRegisterController::bytes ( ) const

protectedpure virtual

Implemented in cutehmi::modbus::Register16Controller, and cutehmi::modbus::Register1Controller.

◆ classBegin()

void cutehmi::modbus::AbstractRegisterController::classBegin ( )

overrideprotectedvirtual

Implements QQmlParserStatus.

◆ componentComplete()

void cutehmi::modbus::AbstractRegisterController::componentComplete ( )

overrideprotectedvirtual

Implements QQmlParserStatus.

◆ device()

AbstractDevice * cutehmi::modbus::AbstractRegisterController::device ( ) const

◆ deviceChanged

void cutehmi::modbus::AbstractRegisterController::deviceChanged ( )

signal

◆ enabled()

bool cutehmi::modbus::AbstractRegisterController::enabled ( ) const

◆ enabledChanged

void cutehmi::modbus::AbstractRegisterController::enabledChanged ( )

signal

◆ onDeviceDestroyed()

virtual void cutehmi::modbus::AbstractRegisterController::onDeviceDestroyed ( )

protectedpure virtual

Implemented in cutehmi::modbus::Register16Controller, and cutehmi::modbus::Register1Controller.

◆ onRequestCompleted

virtual void cutehmi::modbus::AbstractRegisterController::onRequestCompleted	(	QJsonObject	request,
		QJsonObject	reply
	)

protectedpure virtualslot

◆ readOnWrite()

bool cutehmi::modbus::AbstractRegisterController::readOnWrite ( ) const

◆ readOnWriteChanged

void cutehmi::modbus::AbstractRegisterController::readOnWriteChanged ( )

signal

◆ requestReadRegisters()

virtual void cutehmi::modbus::AbstractRegisterController::requestReadRegisters	(	quint16	address,
		quint16	amount,
		QUuid *	requestId
	)		const

protectedpure virtual

Implemented in cutehmi::modbus::CoilController, cutehmi::modbus::DiscreteInputController, cutehmi::modbus::HoldingRegisterController, and cutehmi::modbus::InputRegisterController.

◆ setAddress()

void cutehmi::modbus::AbstractRegisterController::setAddress ( unsigned int address )

◆ setBusy()

void cutehmi::modbus::AbstractRegisterController::setBusy ( bool busy )

protected

◆ setDevice()

void cutehmi::modbus::AbstractRegisterController::setDevice ( AbstractDevice * device )

◆ setEnabled()

void cutehmi::modbus::AbstractRegisterController::setEnabled ( bool enabled )

◆ setReadOnWrite()

void cutehmi::modbus::AbstractRegisterController::setReadOnWrite ( bool readOnWrite )

◆ setWriteDelay()

void cutehmi::modbus::AbstractRegisterController::setWriteDelay ( int writeDelay )

◆ setWriteMode()

void cutehmi::modbus::AbstractRegisterController::setWriteMode ( AbstractRegisterController::WriteMode writeMode )

◆ writeDelay()

int cutehmi::modbus::AbstractRegisterController::writeDelay ( ) const

◆ writeDelayChanged

void cutehmi::modbus::AbstractRegisterController::writeDelayChanged ( )

signal

◆ writeMode()

AbstractRegisterController::WriteMode cutehmi::modbus::AbstractRegisterController::writeMode ( ) const

◆ writeModeChanged

void cutehmi::modbus::AbstractRegisterController::writeModeChanged ( )

signal

Member Data Documentation

◆ INITIAL_ADDRESS

constexpr unsigned int cutehmi::modbus::AbstractRegisterController::INITIAL_ADDRESS = 0

staticconstexpr

◆ INITIAL_BUSY

constexpr bool cutehmi::modbus::AbstractRegisterController::INITIAL_BUSY = true

staticconstexpr

◆ INITIAL_ENABLED

constexpr bool cutehmi::modbus::AbstractRegisterController::INITIAL_ENABLED = true

staticconstexpr

◆ INITIAL_READ_ON_WRITE

constexpr bool cutehmi::modbus::AbstractRegisterController::INITIAL_READ_ON_WRITE = true

staticconstexpr

◆ INITIAL_WRITE_DELAY

constexpr int cutehmi::modbus::AbstractRegisterController::INITIAL_WRITE_DELAY = 500

staticconstexpr

◆ INITIAL_WRITE_MODE

constexpr AbstractRegisterController::WriteMode cutehmi::modbus::AbstractRegisterController::INITIAL_WRITE_MODE = WRITE_DELAYED

staticconstexpr

Property Documentation

◆ address

unsigned int cutehmi::modbus::AbstractRegisterController::address

readwrite

Register address.

◆ busy

bool cutehmi::modbus::AbstractRegisterController::busy

read

Busy status.

Controller indicated that it's busy when there's pending read or write.

◆ device

cutehmi::modbus::AbstractDevice * cutehmi::modbus::AbstractRegisterController::device

readwrite

Device associated with controller.

◆ enabled

bool cutehmi::modbus::AbstractRegisterController::enabled

readwrite

Determines whether controller is enabled.

◆ readOnWrite

bool cutehmi::modbus::AbstractRegisterController::readOnWrite

readwrite

Read-on-write.

If true, then controller requests subsequent read upon write.

◆ writeDelay

int cutehmi::modbus::AbstractRegisterController::writeDelay

readwrite

Write delay [ms].

Relevant only when write mode is set to WRITE_DELAYED.

◆ writeMode

WriteMode cutehmi::modbus::AbstractRegisterController::writeMode

readwrite

Write mode.

Public Types

Signals

Public Member Functions

Static Public Attributes

Protected Slots

Protected Member Functions

Properties

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ WriteMode

Constructor & Destructor Documentation

◆ AbstractRegisterController()

Member Function Documentation

◆ address()

◆ addressChanged

◆ busy()

◆ busyChanged

◆ bytes()

◆ classBegin()

◆ componentComplete()

◆ device()

◆ deviceChanged

◆ enabled()

◆ enabledChanged

◆ onDeviceDestroyed()

◆ onRequestCompleted

◆ readOnWrite()

◆ readOnWriteChanged

◆ requestReadRegisters()

◆ setAddress()

◆ setBusy()

◆ setDevice()

◆ setEnabled()

◆ setReadOnWrite()

◆ setWriteDelay()

◆ setWriteMode()

◆ writeDelay()

◆ writeDelayChanged

◆ writeMode()

◆ writeModeChanged

Member Data Documentation

◆ INITIAL_ADDRESS

◆ INITIAL_BUSY

◆ INITIAL_ENABLED

◆ INITIAL_READ_ON_WRITE

◆ INITIAL_WRITE_DELAY

◆ INITIAL_WRITE_MODE

Property Documentation

◆ address

◆ busy

◆ device

◆ enabled

◆ readOnWrite

◆ writeDelay

◆ writeMode
