Abstract Modbus device. More...

#include <cutehmi/modbus/AbstractDevice.hpp>

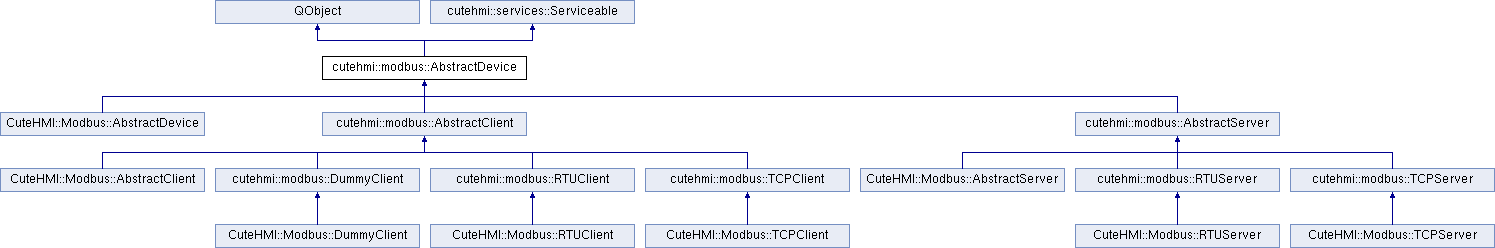

Inheritance diagram for cutehmi::modbus::AbstractDevice:

Public Types
enum	State { OPENING , OPENED , CLOSING , CLOSED }

enum	Function { FUNCTION_INVALID = QModbusPdu::Invalid , FUNCTION_READ_COILS = QModbusPdu::ReadCoils , FUNCTION_READ_DISCRETE_INPUTS = QModbusPdu::ReadDiscreteInputs , FUNCTION_READ_HOLDING_REGISTERS = QModbusPdu::ReadHoldingRegisters , FUNCTION_READ_INPUT_REGISTERS = QModbusPdu::ReadInputRegisters , FUNCTION_WRITE_COIL = QModbusPdu::WriteSingleCoil , FUNCTION_WRITE_HOLDING_REGISTER = QModbusPdu::WriteSingleRegister , FUNCTION_READ_EXCEPTION_STATUS = QModbusPdu::ReadExceptionStatus , FUNCTION_DIAGNOSTICS = QModbusPdu::Diagnostics , FUNCTION_FETCH_COMM_EVENT_COUNTER = QModbusPdu::GetCommEventCounter , FUNCTION_FETCH_COMM_EVENT_LOG = QModbusPdu::GetCommEventLog , FUNCTION_WRITE_MULTIPLE_COILS = QModbusPdu::WriteMultipleCoils , FUNCTION_WRITE_MULTIPLE_HOLDING_REGISTERS = QModbusPdu::WriteMultipleRegisters , FUNCTION_REPORT_SLAVE_ID = QModbusPdu::ReportServerId , FUNCTION_READ_FILE_RECORD = QModbusPdu::ReadFileRecord , FUNCTION_WRITE_FILE_RECORD = QModbusPdu::WriteFileRecord , FUNCTION_MASK_WRITE_HOLDING_REGISTER = QModbusPdu::MaskWriteRegister , FUNCTION_READ_WRITE_MULTIPLE_HOLDING_REGISTERS = QModbusPdu::ReadWriteMultipleRegisters , FUNCTION_READ_FIFO_QUEUE = QModbusPdu::ReadFifoQueue , FUNCTION_UNDEFINED = QModbusPdu::UndefinedFunctionCode , FUNCTION_WRITE_DISCRETE_INPUT , FUNCTION_WRITE_MULTIPLE_DISCRETE_INPUTS , FUNCTION_WRITE_INPUT_REGISTER , FUNCTION_WRITE_MULTIPLE_INPUT_REGISTERS , FUNCTION_RAW }

enum	DiagnosticsSubfunction : quint16 { DIAGNOSTICS_RETURN_QUERY_DATA = 0x00 , DIAGNOSTICS_RESTART_COMM_OPTION = 0x01 , DIAGNOSTICS_RETURN_DIAGNOSTICS_REGISTER = 0x02 , DIAGNOSTICS_CHANGE_ASCII_INPUT_DELIMITER = 0x03 , DIAGNOSTICS_FORCE_LISTEN_ONLY_MODE = 0x04 , DIAGNOSTICS_CLEAR_COUNTERS_AND_DIAGNOSTICS_REGISTER = 0x0A , DIAGNOSTICS_RETURN_BUS_MESSAGE_COUNT = 0x0B , DIAGNOSTICS_RETURN_BUS_COMM_ERROR_COUNT = 0x0C , DIAGNOSTICS_RETURN_BUS_EXCEPTION_ERROR_COUNT = 0x0D , DIAGNOSTICS_RETURN_SLAVE_MESSAGE_COUNT = 0x0E , DIAGNOSTICS_RETURN_SLAVE_NO_RESPONSE_COUNT = 0x0F , DIAGNOSTICS_RETURN_SLAVE_NAK_COUNT = 0x10 , DIAGNOSTICS_RETURN_SLAVE_BUSY_COUNT = 0x11 , DIAGNOSTICS_RETURN_BUS_CHARACTER_OVERRUN_COUNT = 0x12 , DIAGNOSTICS_RETURN_IOP_OVERRUN_COUNT = 0x13 , DIAGNOSTICS_CLEAR_OVERRUN_COUNTER_AND_FLAG = 0x14 , DIAGNOSTICS_GET_CLEAR_MODBUS_PLUS_STATISTICS = 0x15 }

Public Types inherited from cutehmi::services::Serviceable
typedef std::function< void(QState &state, const QString &status)>	AssignStatusFunction

Public Slots
virtual void	open ()=0

virtual void	close ()=0

Signals
void	errored (cutehmi::InplaceError error)

void	stateChanged ()

void	readyChanged ()

void	maxReadCoilsChanged ()

void	maxWriteCoilsChanged ()

void	maxReadDiscreteInputsChanged ()

void	maxWriteDiscreteInputsChanged ()

void	maxReadHoldingRegistersChanged ()

void	maxWriteHoldingRegistersChanged ()

void	maxReadInputRegistersChanged ()

void	maxWriteInputRegistersChanged ()

void	maxRequestsChanged ()

void	requestCompleted (QJsonObject request, QJsonObject reply)

Public Member Functions
State	state () const

bool	ready () const
	Get readiness status. More...

int	maxReadCoils () const

void	setMaxReadCoils (int maxReadCoils)

int	maxWriteCoils () const

void	setMaxWriteCoils (int maxWriteCoils)

int	maxReadDiscreteInputs () const

void	setMaxReadDiscreteInputs (int maxReadDiscreteInputs)

int	maxWriteDiscreteInputs () const

void	setMaxWriteDiscreteInputs (int maxWriteDiscreteInputs)

int	maxReadHoldingRegisters () const

void	setMaxReadHoldingRegisters (int maxReadHoldingRegisters)

int	maxWriteHoldingRegisters () const

void	setMaxWriteHoldingRegisters (int maxWriteHoldingRegisters)

int	maxReadInputRegisters () const

void	setMaxReadInputRegisters (int maxReadInputRegisters)

int	maxWriteInputRegisters () const

void	setMaxWriteInputRegisters (int maxWriteInputRegisters)

int	maxRequests () const

void	setMaxRequests (int maxRequests)

Coil *	coilAt (quint16 address)

DiscreteInput *	discreteInputAt (quint16 address)

HoldingRegister *	holdingRegisterAt (quint16 address)

InputRegister *	inputRegisterAt (quint16 address)

Q_INVOKABLE void	requestReadCoils (quint16 address, quint16 amount=1, QUuid *requestId=nullptr)
	Read coils request. More...

Q_INVOKABLE void	requestWriteCoil (quint16 address, bool value, QUuid *requestId=nullptr)
	Write coils request. More...

Q_INVOKABLE void	requestWriteMultipleCoils (quint16 address, QJsonArray values, QUuid *requestId=nullptr)
	Write multiple coils request. More...

Q_INVOKABLE void	requestReadDiscreteInputs (quint16 address, quint16 amount=1, QUuid *requestId=nullptr)
	Read discrete inputs request. More...

Q_INVOKABLE void	requestWriteDiscreteInput (quint16 address, bool value, QUuid *requestId=nullptr)
	Write discrete input request. More...

Q_INVOKABLE void	requestWriteMultipleDiscreteInputs (quint16 address, QJsonArray values, QUuid *requestId=nullptr)
	Write multiple discrete inputs request. More...

Q_INVOKABLE void	requestReadHoldingRegisters (quint16 address, quint16 amount=1, QUuid *requestId=nullptr)
	Read holding registers request. More...

Q_INVOKABLE void	requestWriteHoldingRegister (quint16 address, quint16 value, QUuid *requestId=nullptr)
	Write holding register request. More...

Q_INVOKABLE void	requestWriteMultipleHoldingRegisters (quint16 address, QJsonArray values, QUuid *requestId=nullptr)
	Write multiple holding registers request. More...

Q_INVOKABLE void	requestReadInputRegisters (quint16 address, quint16 amount=1, QUuid *requestId=nullptr)
	Read input registers request. More...

Q_INVOKABLE void	requestWriteInputRegister (quint16 address, quint16 value, QUuid *requestId=nullptr)
	Write input register request. More...

Q_INVOKABLE void	requestWriteMultipleInputRegisters (quint16 address, QJsonArray values, QUuid *requestId=nullptr)
	Write multiple input registers request. More...

Q_INVOKABLE void	requestDiagnostics (cutehmi::modbus::AbstractDevice::DiagnosticsSubfunction subfunction, quint16 data, QUuid *requestId=nullptr)
	Diagonistics request. More...

Q_INVOKABLE void	requestReadExceptionStatus (QUuid *requestId=nullptr)
	Report slave id request. More...

Q_INVOKABLE void	requestFetchCommEventCounter (QUuid *requestId=nullptr)
	Report slave id request. More...

Q_INVOKABLE void	requestFetchCommEventLog (QUuid *requestId=nullptr)
	Report slave id request. More...

Q_INVOKABLE void	requestReportSlaveId (QUuid *requestId=nullptr)
	Report slave id request. More...

Q_INVOKABLE void	requestMaskWriteHoldingRegister (quint16 address, quint16 andMask, quint16 orMask, QUuid *requestId=nullptr)
	Mask write holding register request. More...

Q_INVOKABLE void	requestReadWriteMultipleHoldingRegisters (quint16 readAddress, quint16 amount, quint16 writeAddress, QJsonArray values, QUuid *requestId=nullptr)
	Read/write multiple holding registers request. More...

Q_INVOKABLE void	requestReadFIFOQueue (quint16 address, QUuid *requestId=nullptr)
	Read FIFO queue request. More...

Q_INVOKABLE QJsonObject	readFileRecordSubrequest (quint16 file, quint16 address, quint16 amount)
	Generate read file record subrequest. More...

Q_INVOKABLE void	requestReadFileRecord (QJsonArray subrequests, QUuid *requestId=nullptr)
	Read file record request. More...

Q_INVOKABLE QJsonObject	writeFileRecordSubrequest (quint16 file, quint16 address, QJsonArray values)
	Generate write file record subrequest. More...

Q_INVOKABLE void	requestWriteFileRecord (QJsonArray subrequests, QUuid *requestId=nullptr)
	Write file record request. More...

Q_INVOKABLE void	request (cutehmi::modbus::AbstractDevice::Function function, QJsonObject payload, QUuid *requestId=nullptr)
	Modbus function request. More...

Public Member Functions inherited from QObject
virtual const QMetaObject *	metaObject () const const

	QObject (QObject *parent)

virtual	~QObject ()

virtual bool	event (QEvent *e)

virtual bool	eventFilter (QObject watched, QEvent event)

QString	objectName () const const

void	setObjectName (const QString &name)

bool	isWidgetType () const const

bool	isWindowType () const const

bool	signalsBlocked () const const

bool	blockSignals (bool block)

QThread *	thread () const const

void	moveToThread (QThread *targetThread)

int	startTimer (int interval, Qt::TimerType timerType)

int	startTimer (std::chrono::milliseconds time, Qt::TimerType timerType)

void	killTimer (int id)

T	findChild (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegExp &regExp, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegularExpression &re, Qt::FindChildOptions options) const const

const QObjectList &	children () const const

void	setParent (QObject *parent)

void	installEventFilter (QObject *filterObj)

void	removeEventFilter (QObject *obj)

QMetaObject::Connection	connect (const QObject sender, const char signal, const char *method, Qt::ConnectionType type) const const

bool	disconnect (const char signal, const QObject receiver, const char *method) const const

bool	disconnect (const QObject receiver, const char method) const const

void	dumpObjectTree ()

void	dumpObjectInfo ()

void	dumpObjectTree () const const

void	dumpObjectInfo () const const

bool	setProperty (const char *name, const QVariant &value)

QVariant	property (const char *name) const const

QList< QByteArray >	dynamicPropertyNames () const const

void	destroyed (QObject *obj)

void	objectNameChanged (const QString &objectName)

QObject *	parent () const const

bool	inherits (const char *className) const const

void	deleteLater ()

	Q_DISABLE_COPY (Class)

	Q_DISABLE_MOVE (Class)

	Q_DISABLE_COPY_MOVE (Class)

T	qobject_cast (QObject *object)

T	qobject_cast (const QObject *object)

T	qFindChild (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QString &name)

QList< T >	qFindChildren (const QObject *obj, const QRegExp &regExp)

	Q_CLASSINFO (Name, Value)

	Q_INTERFACES (...)

	Q_PROPERTY (...)

	Q_ENUMS (...)

	Q_FLAGS (...)

	Q_ENUM (...)

	Q_FLAG (...)

	Q_ENUM_NS (...)

	Q_FLAG_NS (...)

	Q_OBJECT Q_OBJECT

	Q_GADGET Q_GADGET

	Q_NAMESPACE Q_NAMESPACE

	Q_NAMESPACE_EXPORT (EXPORT_MACRO)

	Q_SIGNALS Q_SIGNALS

	Q_SIGNAL Q_SIGNAL

	Q_SLOTS Q_SLOTS

	Q_SLOT Q_SLOT

	Q_EMIT Q_EMIT

	Q_INVOKABLE Q_INVOKABLE

	Q_REVISION Q_REVISION

	Q_SET_OBJECT_NAME (Object)

	QT_NO_NARROWING_CONVERSIONS_IN_CONNECT QT_NO_NARROWING_CONVERSIONS_IN_CONNECT

Public Member Functions inherited from cutehmi::services::Serviceable
virtual void	configureStarting (QState *starting, AssignStatusFunction assignStatus)=0

virtual void	configureStarted (QState active, const QState idling, const QState *yielding, AssignStatusFunction assignStatus)=0

virtual void	configureStopping (QState *stopping, AssignStatusFunction assignStatus)=0

virtual void	configureBroken (QState *broken, AssignStatusFunction assignStatus)=0

virtual void	configureRepairing (QState *repairing, AssignStatusFunction assignStatus)=0

virtual void	configureEvacuating (QState *evacuating, AssignStatusFunction assignStatus)=0

virtual std::unique_ptr< QAbstractTransition >	transitionToStarted () const=0

virtual std::unique_ptr< QAbstractTransition >	transitionToStopped () const=0

virtual std::unique_ptr< QAbstractTransition >	transitionToBroken () const=0

virtual std::unique_ptr< QAbstractTransition >	transitionToYielding () const=0

virtual std::unique_ptr< QAbstractTransition >	transitionToIdling () const=0

Static Public Attributes
static constexpr quint16	MIN_ADDRESS = 0

static constexpr quint16	MAX_ADDRESS = 65535

static constexpr int	INITIAL_MAX_READ_COILS = 16

static constexpr int	INITIAL_MAX_WRITE_COILS = 16

static constexpr int	INITIAL_MAX_READ_DISCRETE_INPUTS = 16

static constexpr int	INITIAL_MAX_WRITE_DISCRETE_INPUTS = 16

static constexpr int	INITIAL_MAX_READ_HOLDING_REGISTERS = 16

static constexpr int	INITIAL_MAX_WRITE_HOLDING_REGISTERS = 16

static constexpr int	INITIAL_MAX_READ_INPUT_REGISTERS = 16

static constexpr int	INITIAL_MAX_WRITE_INPUT_REGISTERS = 16

static constexpr int	INITIAL_MAX_REQUESTS = 1000

static constexpr State	INITIAL_STATE = CLOSED

static constexpr bool	INITIAL_READY = false

Query limits.
Modbus protocol imposes following restriction on amount of data that can be read or write at once. ‍"The quantity of registers to be read, combined with all other fields in the expected response, must not exceed the allowable length of Modbus messages: 256 bytes." – Modicon Modbus Protocol Reference Guide PI–MBUS–300 Rev. J This means that Modbus message must not exceed 256 octets in size. In Modbus over TCP, device address and CRC (3 octets) are traded for 6 octet header and 1 octet unit identifier, which gives 4 octets less to store values. Theoretical maximal amounts of values for given Modbus register types, that can be queried within a single message, are defined by constants below, however particular PLCs may impose further restrictions.
static constexpr int	MAX_READ_TCP_COILS = 1976
	Maximal amount of coils that can be read at once through TCP. More...

static constexpr int	MAX_READ_RTU_COILS = 2008
	Maximal amount of coils that can be read at once through RTU. More...

static constexpr int	MAX_WRITE_TCP_COILS = 1944
	Maximal amount of coils that can be written at once through TCP. More...

static constexpr int	MAX_WRITE_RTU_COILS = 1976
	Maximal amount of coils that can be written at once through RTU. More...

static constexpr int	MAX_READ_TCP_DISCRETE_INPUTS = 1976
	Maximal amount of discrete inputs that can be read at once through TCP. More...

static constexpr int	MAX_READ_RTU_DISCRETE_INPUTS = 2008
	Maximal amount of discrete inputs that can be read at once through RTU. More...

static constexpr int	MAX_READ_TCP_HOLDING_REGISTERS = 123
	Maximal amount of holding registers that can be read at once through TCP. More...

static constexpr int	MAX_READ_RTU_HOLDING_REGISTERS = 125
	Maximal amount of holding registers that can be read at once through RTU. More...

static constexpr int	MAX_WRITE_TCP_HOLDING_REGISTERS = 123
	Maximal amount of holding registers that can be written at once through TCP. More...

static constexpr int	MAX_WRITE_RTU_HOLDING_REGISTERS = 125
	Maximal amount of holding registers that can be written at once through RTU. More...

static constexpr int	MAX_READ_TCP_INPUT_REGISTERS = 123
	Maximal amount of input registers that can be read at once through TCP. More...

static constexpr int	MAX_READ_RTU_INPUT_REGISTERS = 125
	Maximal amount of input registers that can be read at once through RTU. More...

Protected Types
typedef internal::RegisterTraits< internal::Coil >::Container	CoilDataContainer

typedef internal::RegisterTraits< internal::DiscreteInput >::Container	DiscreteInputDataContainer

typedef internal::RegisterTraits< internal::HoldingRegister >::Container	HoldingRegisterDataContainer

typedef internal::RegisterTraits< internal::InputRegister >::Container	InputRegisterDataContainer

Protected Slots
virtual void	handleReply (QUuid requestId, QJsonObject reply)
	Reply handler. More...

void	setState (cutehmi::modbus::AbstractDevice::State state)

void	setReady (bool ready)

void	handleError (cutehmi::InplaceError error)

Protected Member Functions
	AbstractDevice (QObject *parent=nullptr)

	~AbstractDevice () override
	Destructor. More...

virtual void	handleRequest (const QJsonObject &request)=0
	Handle request. More...

const CoilDataContainer &	coilData () const

CoilDataContainer &	coilData ()

const DiscreteInputDataContainer &	discreteInputData () const

DiscreteInputDataContainer &	discreteInputData ()

const HoldingRegisterDataContainer &	holdingRegisterData () const

HoldingRegisterDataContainer &	holdingRegisterData ()

const InputRegisterDataContainer &	inputRegisterData () const

InputRegisterDataContainer &	inputRegisterData ()

QJsonObject	pendingRequest (QUuid requestId) const

QJsonObject	takePendingRequest (QUuid requestId)

Q_SIGNAL void	broke ()

Q_SIGNAL void	stopped ()

Q_SIGNAL void	started ()

Protected Member Functions inherited from QObject
QObject *	sender () const const

int	senderSignalIndex () const const

int	receivers (const char *signal) const const

bool	isSignalConnected (const QMetaMethod &signal) const const

virtual void	timerEvent (QTimerEvent *event)

virtual void	childEvent (QChildEvent *event)

virtual void	customEvent (QEvent *event)

virtual void	connectNotify (const QMetaMethod &signal)

virtual void	disconnectNotify (const QMetaMethod &signal)

Protected Member Functions inherited from cutehmi::services::Serviceable
	Serviceable ()=default

virtual	~Serviceable ()=default

	Serviceable (const Serviceable &other)=default

Serviceable &	operator= (const Serviceable &other)=default

Properties
State	state

bool	ready

int	maxReadCoils

int	maxWriteCoils

int	maxReadDiscreteInputs

int	maxWriteDiscreteInputs

int	maxReadHoldingRegisters

int	maxWriteHoldingRegisters

int	maxReadInputRegisters

int	maxWriteInputRegisters

int	maxRequests

Properties inherited from QObject
	objectName

Friends
class	test_AbstractDevice

class	test_AbstractServer

class	internal::IterableTasks

Additional Inherited Members
Static Public Member Functions inherited from QObject
QString	tr (const char sourceText, const char disambiguation, int n)

QString	trUtf8 (const char sourceText, const char disambiguation, int n)

QMetaObject::Connection	connect (const QObject sender, const char signal, const QObject receiver, const char method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject *sender, PointerToMemberFunction signal, Functor functor)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject context, Functor functor, Qt::ConnectionType type)

bool	disconnect (const QObject sender, const char signal, const QObject receiver, const char method)

bool	disconnect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method)

bool	disconnect (const QMetaObject::Connection &connection)

bool	disconnect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method)

Public Attributes inherited from QObject
typedef	QObjectList

Detailed Description

Abstract Modbus device.

Member Typedef Documentation

◆ CoilDataContainer

typedef internal::RegisterTraits<internal::Coil>::Container cutehmi::modbus::AbstractDevice::CoilDataContainer

protected

◆ DiscreteInputDataContainer

typedef internal::RegisterTraits<internal::DiscreteInput>::Container cutehmi::modbus::AbstractDevice::DiscreteInputDataContainer

protected

◆ HoldingRegisterDataContainer

typedef internal::RegisterTraits<internal::HoldingRegister>::Container cutehmi::modbus::AbstractDevice::HoldingRegisterDataContainer

protected

◆ InputRegisterDataContainer

typedef internal::RegisterTraits<internal::InputRegister>::Container cutehmi::modbus::AbstractDevice::InputRegisterDataContainer

protected

Member Enumeration Documentation

◆ DiagnosticsSubfunction

enum cutehmi::modbus::AbstractDevice::DiagnosticsSubfunction : quint16

Enumerator
DIAGNOSTICS_RETURN_QUERY_DATA
DIAGNOSTICS_RESTART_COMM_OPTION
DIAGNOSTICS_RETURN_DIAGNOSTICS_REGISTER
DIAGNOSTICS_CHANGE_ASCII_INPUT_DELIMITER
DIAGNOSTICS_FORCE_LISTEN_ONLY_MODE
DIAGNOSTICS_CLEAR_COUNTERS_AND_DIAGNOSTICS_REGISTER
DIAGNOSTICS_RETURN_BUS_MESSAGE_COUNT
DIAGNOSTICS_RETURN_BUS_COMM_ERROR_COUNT
DIAGNOSTICS_RETURN_BUS_EXCEPTION_ERROR_COUNT
DIAGNOSTICS_RETURN_SLAVE_MESSAGE_COUNT
DIAGNOSTICS_RETURN_SLAVE_NO_RESPONSE_COUNT
DIAGNOSTICS_RETURN_SLAVE_NAK_COUNT
DIAGNOSTICS_RETURN_SLAVE_BUSY_COUNT
DIAGNOSTICS_RETURN_BUS_CHARACTER_OVERRUN_COUNT
DIAGNOSTICS_RETURN_IOP_OVERRUN_COUNT
DIAGNOSTICS_CLEAR_OVERRUN_COUNTER_AND_FLAG
DIAGNOSTICS_GET_CLEAR_MODBUS_PLUS_STATISTICS

◆ Function

enum cutehmi::modbus::AbstractDevice::Function

Enumerator
FUNCTION_INVALID
FUNCTION_READ_COILS
FUNCTION_READ_DISCRETE_INPUTS
FUNCTION_READ_HOLDING_REGISTERS
FUNCTION_READ_INPUT_REGISTERS
FUNCTION_WRITE_COIL
FUNCTION_WRITE_HOLDING_REGISTER
FUNCTION_READ_EXCEPTION_STATUS
FUNCTION_DIAGNOSTICS
FUNCTION_FETCH_COMM_EVENT_COUNTER
FUNCTION_FETCH_COMM_EVENT_LOG
FUNCTION_WRITE_MULTIPLE_COILS
FUNCTION_WRITE_MULTIPLE_HOLDING_REGISTERS
FUNCTION_REPORT_SLAVE_ID
FUNCTION_READ_FILE_RECORD
FUNCTION_WRITE_FILE_RECORD
FUNCTION_MASK_WRITE_HOLDING_REGISTER
FUNCTION_READ_WRITE_MULTIPLE_HOLDING_REGISTERS
FUNCTION_READ_FIFO_QUEUE
FUNCTION_UNDEFINED
FUNCTION_WRITE_DISCRETE_INPUT
FUNCTION_WRITE_MULTIPLE_DISCRETE_INPUTS
FUNCTION_WRITE_INPUT_REGISTER
FUNCTION_WRITE_MULTIPLE_INPUT_REGISTERS
FUNCTION_RAW

◆ State

enum cutehmi::modbus::AbstractDevice::State

Enumerator
OPENING
OPENED
CLOSING
CLOSED

Constructor & Destructor Documentation

◆ AbstractDevice()

cutehmi::modbus::AbstractDevice::AbstractDevice ( QObject * parent = nullptr )

protected

◆ ~AbstractDevice()

cutehmi::modbus::AbstractDevice::~AbstractDevice ( )

overrideprotected

Destructor.

Warning: References to coils, discrete inputs, holding registers and input registers become invalid before QObject emits destroyed() signal.

Member Function Documentation

◆ broke()

Q_SIGNAL void cutehmi::modbus::AbstractDevice::broke ( )

protected

◆ close

virtual void cutehmi::modbus::AbstractDevice::close ( )

pure virtualslot

◆ coilAt()

Coil * cutehmi::modbus::AbstractDevice::coilAt ( quint16 address )

◆ coilData() [1/2]

AbstractDevice::CoilDataContainer & cutehmi::modbus::AbstractDevice::coilData ( )

protected

◆ coilData() [2/2]

const AbstractDevice::CoilDataContainer & cutehmi::modbus::AbstractDevice::coilData ( ) const

protected

◆ discreteInputAt()

DiscreteInput * cutehmi::modbus::AbstractDevice::discreteInputAt ( quint16 address )

◆ discreteInputData() [1/2]

AbstractDevice::DiscreteInputDataContainer & cutehmi::modbus::AbstractDevice::discreteInputData ( )

protected

◆ discreteInputData() [2/2]

const AbstractDevice::DiscreteInputDataContainer & cutehmi::modbus::AbstractDevice::discreteInputData ( ) const

protected

◆ errored

void cutehmi::modbus::AbstractDevice::errored ( cutehmi::InplaceError error )

signal

◆ handleError

void cutehmi::modbus::AbstractDevice::handleError ( cutehmi::InplaceError error )

protectedslot

◆ handleReply

void cutehmi::modbus::AbstractDevice::handleReply	(	QUuid	requestId,
		QJsonObject	reply
	)

protectedvirtualslot

Reply handler.

Parameters

requestId	request id.
reply	reply data.

Reimplemented in cutehmi::modbus::AbstractClient.

◆ handleRequest()

virtual void cutehmi::modbus::AbstractDevice::handleRequest ( const QJsonObject & request )

protectedpure virtual

Handle request.

This function acts as request handler, that derived class must implement. Internally request() function creates request object and passes it to request handler of derived class. Request object is added to pending requests queue. Derived class should start processing request. Once request completes derived class is expected to prepare reply and call handleReply() function. Otherwise it has to remove request from queue by calling takePendingRequest() function and emit requestCompleted() signal.

Parameters

request request object containing request header and payload.

Implemented in cutehmi::modbus::AbstractClient, and cutehmi::modbus::AbstractServer.

◆ holdingRegisterAt()

HoldingRegister * cutehmi::modbus::AbstractDevice::holdingRegisterAt ( quint16 address )

◆ holdingRegisterData() [1/2]

AbstractDevice::HoldingRegisterDataContainer & cutehmi::modbus::AbstractDevice::holdingRegisterData ( )

protected

◆ holdingRegisterData() [2/2]

const AbstractDevice::HoldingRegisterDataContainer & cutehmi::modbus::AbstractDevice::holdingRegisterData ( ) const

protected

◆ inputRegisterAt()

InputRegister * cutehmi::modbus::AbstractDevice::inputRegisterAt ( quint16 address )

◆ inputRegisterData() [1/2]

AbstractDevice::InputRegisterDataContainer & cutehmi::modbus::AbstractDevice::inputRegisterData ( )

protected

◆ inputRegisterData() [2/2]

const AbstractDevice::InputRegisterDataContainer & cutehmi::modbus::AbstractDevice::inputRegisterData ( ) const

protected

◆ maxReadCoils()

int cutehmi::modbus::AbstractDevice::maxReadCoils ( ) const

◆ maxReadCoilsChanged

void cutehmi::modbus::AbstractDevice::maxReadCoilsChanged ( )

signal

◆ maxReadDiscreteInputs()

int cutehmi::modbus::AbstractDevice::maxReadDiscreteInputs ( ) const

◆ maxReadDiscreteInputsChanged

void cutehmi::modbus::AbstractDevice::maxReadDiscreteInputsChanged ( )

signal

◆ maxReadHoldingRegisters()

int cutehmi::modbus::AbstractDevice::maxReadHoldingRegisters ( ) const

◆ maxReadHoldingRegistersChanged

void cutehmi::modbus::AbstractDevice::maxReadHoldingRegistersChanged ( )

signal

◆ maxReadInputRegisters()

int cutehmi::modbus::AbstractDevice::maxReadInputRegisters ( ) const

◆ maxReadInputRegistersChanged

void cutehmi::modbus::AbstractDevice::maxReadInputRegistersChanged ( )

signal

◆ maxRequests()

int cutehmi::modbus::AbstractDevice::maxRequests ( ) const

◆ maxRequestsChanged

void cutehmi::modbus::AbstractDevice::maxRequestsChanged ( )

signal

◆ maxWriteCoils()

int cutehmi::modbus::AbstractDevice::maxWriteCoils ( ) const

◆ maxWriteCoilsChanged

void cutehmi::modbus::AbstractDevice::maxWriteCoilsChanged ( )

signal

◆ maxWriteDiscreteInputs()

int cutehmi::modbus::AbstractDevice::maxWriteDiscreteInputs ( ) const

◆ maxWriteDiscreteInputsChanged

void cutehmi::modbus::AbstractDevice::maxWriteDiscreteInputsChanged ( )

signal

◆ maxWriteHoldingRegisters()

int cutehmi::modbus::AbstractDevice::maxWriteHoldingRegisters ( ) const

◆ maxWriteHoldingRegistersChanged

void cutehmi::modbus::AbstractDevice::maxWriteHoldingRegistersChanged ( )

signal

◆ maxWriteInputRegisters()

int cutehmi::modbus::AbstractDevice::maxWriteInputRegisters ( ) const

◆ maxWriteInputRegistersChanged

void cutehmi::modbus::AbstractDevice::maxWriteInputRegistersChanged ( )

signal

◆ open

virtual void cutehmi::modbus::AbstractDevice::open ( )

pure virtualslot

◆ pendingRequest()

QJsonObject cutehmi::modbus::AbstractDevice::pendingRequest ( QUuid requestId ) const

protected

◆ readFileRecordSubrequest()

QJsonObject cutehmi::modbus::AbstractDevice::readFileRecordSubrequest	(	quint16	file,
		quint16	address,
		quint16	amount
	)

Generate read file record subrequest.

Helper function that creates JSON object for readFileRecord() function.

Parameters

file	file number.
address	starting address.
amount	amount of registers to be read.

Returns: JSON object representing read file record subrequest.

See also: readFileRecord().

◆ ready()

bool cutehmi::modbus::AbstractDevice::ready ( ) const

Get readiness status.

Indicates whether device is ready for handling requests.

Returns: readiness status. If device is ready to handle requests function returns true, otherwise it returns false.

◆ readyChanged

void cutehmi::modbus::AbstractDevice::readyChanged ( )

signal

◆ request()

void cutehmi::modbus::AbstractDevice::request	(	cutehmi::modbus::AbstractDevice::Function	function,
		QJsonObject	payload,
		QUuid *	requestId = `nullptr`
	)

Modbus function request.

Parameters

function	Modbus function code.
payload	request payload. Payload is specific to each function code. Typically it is more convenient to use one of the helper slots (requestXYZ()) rather than prepare raw payload.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestCompleted

void cutehmi::modbus::AbstractDevice::requestCompleted	(	QJsonObject	request,
		QJsonObject	reply
	)

signal

◆ requestDiagnostics()

void cutehmi::modbus::AbstractDevice::requestDiagnostics	(	cutehmi::modbus::AbstractDevice::DiagnosticsSubfunction	subfunction,
		quint16	data,
		QUuid *	requestId = `nullptr`
	)

Diagonistics request.

Convenient function that prepares payload and calls request() with FUNCTION_DIAGNOSTICS function code.

Parameters

subfunction	diagnostics function.
data	data to be passed to diagnostics function.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestFetchCommEventCounter()

void cutehmi::modbus::AbstractDevice::requestFetchCommEventCounter ( QUuid * requestId = nullptr )

Report slave id request.

Convenient function that calls request() with FUNCTION_FETCH_COMM_EVENT_COUNTER function code.

Parameters

requestId request id. If not nullptr, function will set pointee to generated request id before handling the request.

◆ requestFetchCommEventLog()

void cutehmi::modbus::AbstractDevice::requestFetchCommEventLog ( QUuid * requestId = nullptr )

Report slave id request.

Convenient function that calls request() with FUNCTION_FETCH_COMM_EVENT_COUNTER function code.

Parameters

requestId request id. If not nullptr, function will set pointee to generated request id before handling the request.

◆ requestMaskWriteHoldingRegister()

void cutehmi::modbus::AbstractDevice::requestMaskWriteHoldingRegister	(	quint16	address,
		quint16	andMask,
		quint16	orMask,
		QUuid *	requestId = `nullptr`
	)

Mask write holding register request.

Convenient function that prepares payload and calls request() with FUNCTION_MASK_WRITE_HOLDING_REGISTER function code. As a result a holding register is modified according to the following formula: holdingRegister[address] = (holdingRegister[address] AND andMask) OR ( orMask AND ! andMask).

Parameters

address	address of the holding register to mask.
andMask	mask to be used as AND mask.
orMask	mask to be used as OR mask.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestReadCoils()

void cutehmi::modbus::AbstractDevice::requestReadCoils	(	quint16	address,
		quint16	amount = `1`,
		QUuid *	requestId = `nullptr`
	)

Read coils request.

Convenient function that prepares request payload and calls request() with FUNCTION_READ_COILS function code.

Parameters

address	starting address.
amount	number of coils to query. Note that Modbus specification expects it to be 16 bit unsigned value, so 65535 is maximal number of coils that can be queried at once (Modbus address range 0-65535 contains 65536 addresses). Modbus message size imposes further restriction - see query limits.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestReadDiscreteInputs()

void cutehmi::modbus::AbstractDevice::requestReadDiscreteInputs	(	quint16	address,
		quint16	amount = `1`,
		QUuid *	requestId = `nullptr`
	)

Read discrete inputs request.

Convenient function that prepares request payload and calls request() with FUNCTION_READ_DISCRETE_INPUTS function code.

Parameters

address	starting address.
amount	number of inputs to query. Note that Modbus specification expects it to be 16 bit unsigned value, so 65535 is maximal number of inputs that can be queried at once (Modbus address range 0-65535 contains 65536 addresses). Modbus message size imposes further restriction - see query limits.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestReadExceptionStatus()

void cutehmi::modbus::AbstractDevice::requestReadExceptionStatus ( QUuid * requestId = nullptr )

Report slave id request.

Convenient function that calls request() with FUNCTION_READ_EXCEPTION_STATUS function code.

Parameters

requestId request id. If not nullptr, function will set pointee to generated request id before handling the request.

◆ requestReadFIFOQueue()

void cutehmi::modbus::AbstractDevice::requestReadFIFOQueue	(	quint16	address,
		QUuid *	requestId = `nullptr`
	)

Read FIFO queue request.

Convenient function that prepares payload and calls request() with FUNCTION_READ_FIFO_QUEUE function code.

Parameters

address	starting address to be read from FIFO queue.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestReadFileRecord()

void cutehmi::modbus::AbstractDevice::requestReadFileRecord	(	QJsonArray	subrequests,
		QUuid *	requestId = `nullptr`
	)

Read file record request.

Convenient function that prepares payload and calls request() with FUNCTION_READ_FILE_RECORD function code.

Parameters

subrequests	array of subrequests. Each array element should be a JSON object, which can be created with readFileRecordSubrequest() function.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

See also: readFileRecordSubrequest().

◆ requestReadHoldingRegisters()

void cutehmi::modbus::AbstractDevice::requestReadHoldingRegisters	(	quint16	address,
		quint16	amount = `1`,
		QUuid *	requestId = `nullptr`
	)

Read holding registers request.

Convenient function that prepares request payload and calls request() with FUNCTION_READ_HOLDING_REGISTERS function code.

Parameters

address	starting address.
amount	number of registers to query. Note that Modbus specification expects it to be 16 bit unsigned value, so 65535 is maximal number of registers that can be queried at once (Modbus address range 0-65535 contains 65536 addresses). Modbus message size imposes further restriction - see query limits.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestReadInputRegisters()

void cutehmi::modbus::AbstractDevice::requestReadInputRegisters	(	quint16	address,
		quint16	amount = `1`,
		QUuid *	requestId = `nullptr`
	)

Read input registers request.

Convenient function that prepares request payload and calls request() with FUNCTION_READ_INPUT_REGISTERS function code.

Parameters

address	starting address.
amount	number of registers to query. Note that Modbus specification expects it to be 16 bit unsigned value, so 65535 is maximal number of registers that can be queried at once (Modbus address range 0-65535 contains 65536 addresses). Modbus message size imposes further restriction - see query limits.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestReadWriteMultipleHoldingRegisters()

void cutehmi::modbus::AbstractDevice::requestReadWriteMultipleHoldingRegisters	(	quint16	readAddress,
		quint16	amount,
		quint16	writeAddress,
		QJsonArray	values,
		QUuid *	requestId = `nullptr`
	)

Read/write multiple holding registers request.

Convenient function that prepares payload and calls request() with FUNCTION_READ_WRITE_MULTIPLE_HOLDING_REGISTERS function code.

Parameters

readAddress	starting address of registers to be read from.
amount	amount of registers to be read.
writeAddress	starting address of registers to be written to.
values	values to be written.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestReportSlaveId()

void cutehmi::modbus::AbstractDevice::requestReportSlaveId ( QUuid * requestId = nullptr )

Report slave id request.

Convenient function that calls request() with FUNCTION_REPORT_SLAVE_ID function code.

Parameters

requestId request id. If not nullptr, function will set pointee to generated request id before handling the request.

◆ requestWriteCoil()

void cutehmi::modbus::AbstractDevice::requestWriteCoil	(	quint16	address,
		bool	value,
		QUuid *	requestId = `nullptr`
	)

Write coils request.

Convenient function that prepares request payload and calls request(FUNCTION_WRITE_COIL, payload).

Parameters

address	address of the coil.
value	value to be set.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestWriteDiscreteInput()

void cutehmi::modbus::AbstractDevice::requestWriteDiscreteInput	(	quint16	address,
		bool	value,
		QUuid *	requestId = `nullptr`
	)

Write discrete input request.

Convenient function that prepares request payload and calls request() with FUNCTION_WRITE_DISCRETE_INPUT function code.

Parameters

address	address of the discrete input.
value	value to be set.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestWriteFileRecord()

void cutehmi::modbus::AbstractDevice::requestWriteFileRecord	(	QJsonArray	subrequests,
		QUuid *	requestId = `nullptr`
	)

Write file record request.

Convenient function that prepares payload and calls request() with FUNCTION_WRITE_FILE_RECORD function code.

Parameters

subrequests	array of subrequests. Each array element should be a JSON object, which can be created with writeFileRecordSubrequest() function.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

See also: writeFileRecordSubrequest().

◆ requestWriteHoldingRegister()

void cutehmi::modbus::AbstractDevice::requestWriteHoldingRegister	(	quint16	address,
		quint16	value,
		QUuid *	requestId = `nullptr`
	)

Write holding register request.

Convenient function that prepares request payload and calls request() with FUNCTION_WRITE_HOLDING_REGISTER function code.

Parameters

address	address of the coil.
value	value to be set.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestWriteInputRegister()

void cutehmi::modbus::AbstractDevice::requestWriteInputRegister	(	quint16	address,
		quint16	value,
		QUuid *	requestId = `nullptr`
	)

Write input register request.

Convenient function that prepares request payload and calls request(FUNCTION_WRITE_INPUT_REGISTER).

Parameters

address	address of the input register.
value	value to be set.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestWriteMultipleCoils()

void cutehmi::modbus::AbstractDevice::requestWriteMultipleCoils	(	quint16	address,
		QJsonArray	values,
		QUuid *	requestId = `nullptr`
	)

Write multiple coils request.

Convenient function that prepares request payload and calls request() with FUNCTION_WRITE_MULTIPLE_COILS function code.

Parameters

address	address of the first coil.
values	array containing values to be set.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestWriteMultipleDiscreteInputs()

void cutehmi::modbus::AbstractDevice::requestWriteMultipleDiscreteInputs	(	quint16	address,
		QJsonArray	values,
		QUuid *	requestId = `nullptr`
	)

Write multiple discrete inputs request.

Convenient function that prepares request payload and calls request() with FUNCTION_WRITE_MULTIPLE_DISCRETE_INPUTS function code.

Parameters

address	address of the first discrete input.
values	array containing values to be set.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestWriteMultipleHoldingRegisters()

void cutehmi::modbus::AbstractDevice::requestWriteMultipleHoldingRegisters	(	quint16	address,
		QJsonArray	values,
		QUuid *	requestId = `nullptr`
	)

Write multiple holding registers request.

Convenient function that prepares request payload and calls request() with FUNCTION_WRITE_MULTIPLE_HOLDING_REGISTERS function code.

Parameters

address	address of the first holding register.
values	array containing values to be set.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ requestWriteMultipleInputRegisters()

void cutehmi::modbus::AbstractDevice::requestWriteMultipleInputRegisters	(	quint16	address,
		QJsonArray	values,
		QUuid *	requestId = `nullptr`
	)

Write multiple input registers request.

Convenient function that prepares request payload and calls request() with FUNCTION_WRITE_MULTIPLE_INPUT_REGISTERS function code.

Parameters

address	address of the first input register.
values	array containing values to be set.
requestId	request id. If not `nullptr`, function will set pointee to generated request id before handling the request.

◆ setMaxReadCoils()

void cutehmi::modbus::AbstractDevice::setMaxReadCoils ( int maxReadCoils )

◆ setMaxReadDiscreteInputs()

void cutehmi::modbus::AbstractDevice::setMaxReadDiscreteInputs ( int maxReadDiscreteInputs )

◆ setMaxReadHoldingRegisters()

void cutehmi::modbus::AbstractDevice::setMaxReadHoldingRegisters ( int maxReadHoldingRegisters )

◆ setMaxReadInputRegisters()

void cutehmi::modbus::AbstractDevice::setMaxReadInputRegisters ( int maxReadInputRegisters )

◆ setMaxRequests()

void cutehmi::modbus::AbstractDevice::setMaxRequests ( int maxRequests )

◆ setMaxWriteCoils()

void cutehmi::modbus::AbstractDevice::setMaxWriteCoils ( int maxWriteCoils )

◆ setMaxWriteDiscreteInputs()

void cutehmi::modbus::AbstractDevice::setMaxWriteDiscreteInputs ( int maxWriteDiscreteInputs )

◆ setMaxWriteHoldingRegisters()

void cutehmi::modbus::AbstractDevice::setMaxWriteHoldingRegisters ( int maxWriteHoldingRegisters )

◆ setMaxWriteInputRegisters()

void cutehmi::modbus::AbstractDevice::setMaxWriteInputRegisters ( int maxWriteInputRegisters )

◆ setReady

void cutehmi::modbus::AbstractDevice::setReady ( bool ready )

protectedslot

◆ setState

void cutehmi::modbus::AbstractDevice::setState ( cutehmi::modbus::AbstractDevice::State state )

protectedslot

◆ started()

Q_SIGNAL void cutehmi::modbus::AbstractDevice::started ( )

protected

◆ state()

AbstractDevice::State cutehmi::modbus::AbstractDevice::state ( ) const

◆ stateChanged

void cutehmi::modbus::AbstractDevice::stateChanged ( )

signal

◆ stopped()

Q_SIGNAL void cutehmi::modbus::AbstractDevice::stopped ( )

protected

◆ takePendingRequest()

QJsonObject cutehmi::modbus::AbstractDevice::takePendingRequest ( QUuid requestId )

protected

◆ writeFileRecordSubrequest()

QJsonObject cutehmi::modbus::AbstractDevice::writeFileRecordSubrequest	(	quint16	file,
		quint16	address,
		QJsonArray	values
	)

Generate write file record subrequest.

Helper function that creates JSON object for writeFileRecord() function.

Parameters

file	file number.
address	starting address.
values	values to be written.

Returns: JSON object representing write file record subrequest.

See also: writeFileRecord().

Friends And Related Function Documentation

◆ internal::IterableTasks

friend class internal::IterableTasks

friend

◆ test_AbstractDevice

friend class test_AbstractDevice

friend

◆ test_AbstractServer

friend class test_AbstractServer

friend

Member Data Documentation

◆ INITIAL_MAX_READ_COILS

constexpr int cutehmi::modbus::AbstractDevice::INITIAL_MAX_READ_COILS = 16

staticconstexpr

◆ INITIAL_MAX_READ_DISCRETE_INPUTS

constexpr int cutehmi::modbus::AbstractDevice::INITIAL_MAX_READ_DISCRETE_INPUTS = 16

staticconstexpr

◆ INITIAL_MAX_READ_HOLDING_REGISTERS

constexpr int cutehmi::modbus::AbstractDevice::INITIAL_MAX_READ_HOLDING_REGISTERS = 16

staticconstexpr

◆ INITIAL_MAX_READ_INPUT_REGISTERS

constexpr int cutehmi::modbus::AbstractDevice::INITIAL_MAX_READ_INPUT_REGISTERS = 16

staticconstexpr

◆ INITIAL_MAX_REQUESTS

constexpr int cutehmi::modbus::AbstractDevice::INITIAL_MAX_REQUESTS = 1000

staticconstexpr

◆ INITIAL_MAX_WRITE_COILS

constexpr int cutehmi::modbus::AbstractDevice::INITIAL_MAX_WRITE_COILS = 16

staticconstexpr

◆ INITIAL_MAX_WRITE_DISCRETE_INPUTS

constexpr int cutehmi::modbus::AbstractDevice::INITIAL_MAX_WRITE_DISCRETE_INPUTS = 16

staticconstexpr

◆ INITIAL_MAX_WRITE_HOLDING_REGISTERS

constexpr int cutehmi::modbus::AbstractDevice::INITIAL_MAX_WRITE_HOLDING_REGISTERS = 16

staticconstexpr

◆ INITIAL_MAX_WRITE_INPUT_REGISTERS

constexpr int cutehmi::modbus::AbstractDevice::INITIAL_MAX_WRITE_INPUT_REGISTERS = 16

staticconstexpr

◆ INITIAL_READY

constexpr bool cutehmi::modbus::AbstractDevice::INITIAL_READY = false

staticconstexpr

◆ INITIAL_STATE

constexpr AbstractDevice::State cutehmi::modbus::AbstractDevice::INITIAL_STATE = CLOSED

staticconstexpr

◆ MAX_ADDRESS

constexpr quint16 cutehmi::modbus::AbstractDevice::MAX_ADDRESS = 65535

staticconstexpr

◆ MAX_READ_RTU_COILS

constexpr int cutehmi::modbus::AbstractDevice::MAX_READ_RTU_COILS = 2008

staticconstexpr

Maximal amount of coils that can be read at once through RTU.

◆ MAX_READ_RTU_DISCRETE_INPUTS

constexpr int cutehmi::modbus::AbstractDevice::MAX_READ_RTU_DISCRETE_INPUTS = 2008

staticconstexpr

Maximal amount of discrete inputs that can be read at once through RTU.

◆ MAX_READ_RTU_HOLDING_REGISTERS

constexpr int cutehmi::modbus::AbstractDevice::MAX_READ_RTU_HOLDING_REGISTERS = 125

staticconstexpr

Maximal amount of holding registers that can be read at once through RTU.

◆ MAX_READ_RTU_INPUT_REGISTERS

constexpr int cutehmi::modbus::AbstractDevice::MAX_READ_RTU_INPUT_REGISTERS = 125

staticconstexpr

Maximal amount of input registers that can be read at once through RTU.

◆ MAX_READ_TCP_COILS

constexpr int cutehmi::modbus::AbstractDevice::MAX_READ_TCP_COILS = 1976

staticconstexpr

Maximal amount of coils that can be read at once through TCP.

◆ MAX_READ_TCP_DISCRETE_INPUTS

constexpr int cutehmi::modbus::AbstractDevice::MAX_READ_TCP_DISCRETE_INPUTS = 1976

staticconstexpr

Maximal amount of discrete inputs that can be read at once through TCP.

◆ MAX_READ_TCP_HOLDING_REGISTERS

constexpr int cutehmi::modbus::AbstractDevice::MAX_READ_TCP_HOLDING_REGISTERS = 123

staticconstexpr

Maximal amount of holding registers that can be read at once through TCP.

◆ MAX_READ_TCP_INPUT_REGISTERS

constexpr int cutehmi::modbus::AbstractDevice::MAX_READ_TCP_INPUT_REGISTERS = 123

staticconstexpr

Maximal amount of input registers that can be read at once through TCP.

◆ MAX_WRITE_RTU_COILS

constexpr int cutehmi::modbus::AbstractDevice::MAX_WRITE_RTU_COILS = 1976

staticconstexpr

Maximal amount of coils that can be written at once through RTU.

◆ MAX_WRITE_RTU_HOLDING_REGISTERS

constexpr int cutehmi::modbus::AbstractDevice::MAX_WRITE_RTU_HOLDING_REGISTERS = 125

staticconstexpr

Maximal amount of holding registers that can be written at once through RTU.

◆ MAX_WRITE_TCP_COILS

constexpr int cutehmi::modbus::AbstractDevice::MAX_WRITE_TCP_COILS = 1944

staticconstexpr

Maximal amount of coils that can be written at once through TCP.

◆ MAX_WRITE_TCP_HOLDING_REGISTERS

constexpr int cutehmi::modbus::AbstractDevice::MAX_WRITE_TCP_HOLDING_REGISTERS = 123

staticconstexpr

Maximal amount of holding registers that can be written at once through TCP.

◆ MIN_ADDRESS

constexpr quint16 cutehmi::modbus::AbstractDevice::MIN_ADDRESS = 0

staticconstexpr

Property Documentation

◆ maxReadCoils

int cutehmi::modbus::AbstractDevice::maxReadCoils

readwrite

◆ maxReadDiscreteInputs

int cutehmi::modbus::AbstractDevice::maxReadDiscreteInputs

readwrite

◆ maxReadHoldingRegisters

int cutehmi::modbus::AbstractDevice::maxReadHoldingRegisters

readwrite

◆ maxReadInputRegisters

int cutehmi::modbus::AbstractDevice::maxReadInputRegisters

readwrite

◆ maxRequests

int cutehmi::modbus::AbstractDevice::maxRequests

readwrite

◆ maxWriteCoils

int cutehmi::modbus::AbstractDevice::maxWriteCoils

readwrite

◆ maxWriteDiscreteInputs

int cutehmi::modbus::AbstractDevice::maxWriteDiscreteInputs

readwrite

◆ maxWriteHoldingRegisters

int cutehmi::modbus::AbstractDevice::maxWriteHoldingRegisters

readwrite

◆ maxWriteInputRegisters

int cutehmi::modbus::AbstractDevice::maxWriteInputRegisters

readwrite

◆ ready

bool cutehmi::modbus::AbstractDevice::ready

read

◆ state

State cutehmi::modbus::AbstractDevice::state

read

Public Types

Public Slots

Signals

Public Member Functions

Static Public Attributes

Protected Types

Protected Slots

Protected Member Functions

Properties

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ CoilDataContainer

◆ DiscreteInputDataContainer

◆ HoldingRegisterDataContainer

◆ InputRegisterDataContainer

Member Enumeration Documentation

◆ DiagnosticsSubfunction

◆ Function

◆ State

Constructor & Destructor Documentation

◆ AbstractDevice()

◆ ~AbstractDevice()

Member Function Documentation

◆ broke()

◆ close

◆ coilAt()

◆ coilData() [1/2]

◆ coilData() [2/2]

◆ discreteInputAt()

◆ discreteInputData() [1/2]

◆ discreteInputData() [2/2]

◆ errored

◆ handleError

◆ handleReply

◆ handleRequest()

◆ holdingRegisterAt()

◆ holdingRegisterData() [1/2]

◆ holdingRegisterData() [2/2]

◆ inputRegisterAt()

◆ inputRegisterData() [1/2]

◆ inputRegisterData() [2/2]

◆ maxReadCoils()

◆ maxReadCoilsChanged

◆ maxReadDiscreteInputs()

◆ maxReadDiscreteInputsChanged

◆ maxReadHoldingRegisters()

◆ maxReadHoldingRegistersChanged

◆ maxReadInputRegisters()

◆ maxReadInputRegistersChanged

◆ maxRequests()

◆ maxRequestsChanged

◆ maxWriteCoils()

◆ maxWriteCoilsChanged

◆ maxWriteDiscreteInputs()

◆ maxWriteDiscreteInputsChanged

◆ maxWriteHoldingRegisters()

◆ maxWriteHoldingRegistersChanged

◆ maxWriteInputRegisters()

◆ maxWriteInputRegistersChanged

◆ open

◆ pendingRequest()

◆ readFileRecordSubrequest()

◆ ready()

◆ readyChanged

◆ request()

◆ requestCompleted

◆ requestDiagnostics()

◆ requestFetchCommEventCounter()

◆ requestFetchCommEventLog()

◆ requestMaskWriteHoldingRegister()

◆ requestReadCoils()

◆ requestReadDiscreteInputs()

◆ requestReadExceptionStatus()

◆ requestReadFIFOQueue()

◆ requestReadFileRecord()

◆ requestReadHoldingRegisters()

◆ requestReadInputRegisters()

◆ requestReadWriteMultipleHoldingRegisters()
