Register controller for 16 bit registers. More...

#include <cutehmi/modbus/Register16Controller.hpp>

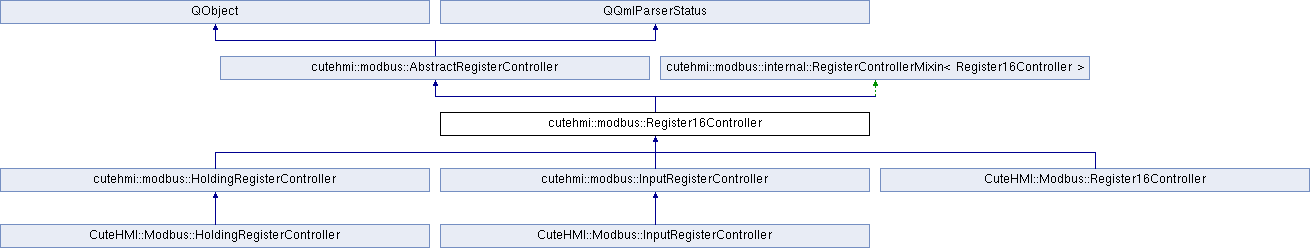

Inheritance diagram for cutehmi::modbus::Register16Controller:

Public Types
enum	Encoding { INT16, UINT16 }

Public Types inherited from cutehmi::modbus::AbstractRegisterController
enum	WriteMode { WRITE_DELAYED, WRITE_POSTPONED, WRITE_IMMEDIATE, WRITE_EXPLICIT }
	Write mode enum. More...

Public Slots
void	writeValue ()

Signals
void	valueChanged ()

void	valueUpdated ()

void	valueScaleChanged ()

void	encodingChanged ()

void	valueWritten ()

void	valueFailed ()

void	valueMismatch ()

Signals inherited from cutehmi::modbus::AbstractRegisterController
void	deviceChanged ()

void	addressChanged ()

void	busyChanged ()

void	readOnWriteChanged ()

void	writeModeChanged ()

void	writeDelayChanged ()

void	enabledChanged ()

Public Member Functions
	Register16Controller (QObject *parent=nullptr)

	~Register16Controller () override

qreal	value () const

void	setValue (qreal value)

qreal	valueScale () const

void	setValueScale (qreal valueScale)

Encoding	encoding () const

void	setEncoding (Encoding encoding)

Public Member Functions inherited from cutehmi::modbus::AbstractRegisterController
	AbstractRegisterController (QObject *parent=nullptr)

AbstractDevice *	device () const

void	setDevice (AbstractDevice *device)

unsigned int	address () const

void	setAddress (unsigned int address)

bool	busy () const

bool	readOnWrite () const

void	setReadOnWrite (bool readOnWrite)

WriteMode	writeMode () const

void	setWriteMode (WriteMode writeMode)

int	writeDelay () const

void	setWriteDelay (int writeDelay)

bool	enabled () const

void	setEnabled (bool enabled)

Public Member Functions inherited from QObject
virtual const QMetaObject *	metaObject () const const

virtual void *	qt_metacast (const char *)

virtual int	qt_metacall (QMetaObject::Call, int, void **)

	QObject (QObject *parent)

virtual	~QObject ()

virtual bool	event (QEvent *e)

virtual bool	eventFilter (QObject watched, QEvent event)

QString	objectName () const const

void	setObjectName (const QString &name)

bool	isWidgetType () const const

bool	isWindowType () const const

bool	signalsBlocked () const const

bool	blockSignals (bool block)

QThread *	thread () const const

void	moveToThread (QThread *targetThread)

int	startTimer (int interval, Qt::TimerType timerType)

int	startTimer (std::chrono::milliseconds time, Qt::TimerType timerType)

void	killTimer (int id)

T	findChild (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegExp &regExp, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegularExpression &re, Qt::FindChildOptions options) const const

const QObjectList &	children () const const

void	setParent (QObject *parent)

void	installEventFilter (QObject *filterObj)

void	removeEventFilter (QObject *obj)

QMetaObject::Connection	connect (const QObject sender, const char signal, const char *method, Qt::ConnectionType type) const const

bool	disconnect (const char signal, const QObject receiver, const char *method) const const

bool	disconnect (const QObject receiver, const char method) const const

void	dumpObjectTree ()

void	dumpObjectInfo ()

void	dumpObjectTree () const const

void	dumpObjectInfo () const const

bool	setProperty (const char *name, const QVariant &value)

QVariant	property (const char *name) const const

QList< QByteArray >	dynamicPropertyNames () const const

void	destroyed (QObject *obj)

void	objectNameChanged (const QString &objectName)

QObject *	parent () const const

bool	inherits (const char *className) const const

void	deleteLater ()

Static Public Attributes
static constexpr qreal	INITIAL_VALUE = 0.0

static constexpr qreal	INITIAL_VALUE_SCALE = 1.0

static constexpr Encoding	INITIAL_ENCODING = UINT16

Static Public Attributes inherited from cutehmi::modbus::AbstractRegisterController
static constexpr unsigned int	INITIAL_ADDRESS = 0

static constexpr WriteMode	INITIAL_WRITE_MODE = WRITE_DELAYED

static constexpr int	INITIAL_WRITE_DELAY = 500

static constexpr bool	INITIAL_BUSY = true

static constexpr bool	INITIAL_READ_ON_WRITE = true

static constexpr bool	INITIAL_ENABLED = true

Protected Slots
void	onRequestCompleted (QJsonObject request, QJsonObject reply) override

void	resetRegister ()

Protected Slots inherited from cutehmi::modbus::AbstractRegisterController
virtual void	onRequestCompleted (QJsonObject request, QJsonObject reply)=0

Protected Member Functions
virtual AbstractDevice::Function	readRegistersFunction () const =0

virtual AbstractDevice::Function	writeRegisterFunction () const =0

virtual void	requestWriteRegister (quint16 address, quint16 value, QUuid *requestId) const =0

virtual Register16 *	registerAt (quint16 address) const =0

void	timerEvent (QTimerEvent *event) override

quint16	bytes () const override

void	onDeviceDestroyed () override

Protected Member Functions inherited from cutehmi::modbus::AbstractRegisterController
virtual void	requestReadRegisters (quint16 address, quint16 amount, QUuid *requestId) const =0

void	classBegin () override

void	componentComplete () override

void	setBusy (bool busy)

Protected Member Functions inherited from QObject
QObject *	sender () const const

int	senderSignalIndex () const const

int	receivers (const char *signal) const const

bool	isSignalConnected (const QMetaMethod &signal) const const

virtual void	childEvent (QChildEvent *event)

virtual void	customEvent (QEvent *event)

virtual void	connectNotify (const QMetaMethod &signal)

virtual void	disconnectNotify (const QMetaMethod &signal)

Protected Member Functions inherited from cutehmi::modbus::internal::RegisterControllerMixin< Register16Controller >
	RegisterControllerMixin ()

void	setValue (ValueType value)

void	writeValue ()

void	timerEvent (QTimerEvent *event)

void	onRequestCompleted (QJsonObject request, QJsonObject reply)

void	clearPostponedWrite ()

Properties
qreal	value

qreal	valueScale

Encoding	encoding

Properties inherited from cutehmi::modbus::AbstractRegisterController
cutehmi::modbus::AbstractDevice	device
	Device associated with controller. More...

unsigned int	address
	Register address. More...

bool	busy
	Busy status. More...

bool	readOnWrite
	Read-on-write. More...

WriteMode	writeMode
	Write mode. More...

int	writeDelay
	Write delay [ms]. More...

bool	enabled
	Determines whether controller is enabled. More...

Properties inherited from QObject
	objectName

Friends
class	internal::RegisterControllerMixin< Register16Controller >

Additional Inherited Members
Static Public Member Functions inherited from QObject
QString	tr (const char sourceText, const char disambiguation, int n)

QString	trUtf8 (const char sourceText, const char disambiguation, int n)

QMetaObject::Connection	connect (const QObject sender, const char signal, const QObject receiver, const char method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject *sender, PointerToMemberFunction signal, Functor functor)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject context, Functor functor, Qt::ConnectionType type)

bool	disconnect (const QObject sender, const char signal, const QObject receiver, const char method)

bool	disconnect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method)

bool	disconnect (const QMetaObject::Connection &connection)

bool	disconnect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method)

Protected Types inherited from cutehmi::modbus::internal::RegisterControllerMixin< Register16Controller >
typedef RegisterControllerTraits< Register16Controller >::ValueType	ValueType

Detailed Description

Register controller for 16 bit registers.

Member Enumeration Documentation

◆ Encoding

enum cutehmi::modbus::Register16Controller::Encoding

Enumerator
INT16
UINT16

Constructor & Destructor Documentation

◆ Register16Controller()

cutehmi::modbus::Register16Controller::Register16Controller ( QObject * parent = nullptr )

◆ ~Register16Controller()

cutehmi::modbus::Register16Controller::~Register16Controller ( )

override

Member Function Documentation

◆ bytes()

quint16 cutehmi::modbus::Register16Controller::bytes ( ) const

overrideprotectedvirtual

Implements cutehmi::modbus::AbstractRegisterController.

◆ encoding()

Encoding cutehmi::modbus::Register16Controller::encoding ( ) const

◆ encodingChanged

void cutehmi::modbus::Register16Controller::encodingChanged ( )

signal

◆ onDeviceDestroyed()

void cutehmi::modbus::Register16Controller::onDeviceDestroyed ( )

overrideprotectedvirtual

Implements cutehmi::modbus::AbstractRegisterController.

◆ onRequestCompleted

void cutehmi::modbus::Register16Controller::onRequestCompleted	(	QJsonObject	request,
		QJsonObject	reply
	)

overrideprotectedslot

◆ readRegistersFunction()

virtual AbstractDevice::Function cutehmi::modbus::Register16Controller::readRegistersFunction ( ) const

protectedpure virtual

Implemented in cutehmi::modbus::HoldingRegisterController, and cutehmi::modbus::InputRegisterController.

◆ registerAt()

virtual Register16* cutehmi::modbus::Register16Controller::registerAt ( quint16 address ) const

protectedpure virtual

Implemented in cutehmi::modbus::HoldingRegisterController, and cutehmi::modbus::InputRegisterController.

◆ requestWriteRegister()

virtual void cutehmi::modbus::Register16Controller::requestWriteRegister	(	quint16	address,
		quint16	value,
		QUuid *	requestId
	)		const

protectedpure virtual

Implemented in cutehmi::modbus::HoldingRegisterController, and cutehmi::modbus::InputRegisterController.

◆ resetRegister

void cutehmi::modbus::Register16Controller::resetRegister ( )

protectedslot

◆ setEncoding()

void cutehmi::modbus::Register16Controller::setEncoding ( Encoding encoding )

◆ setValue()

void cutehmi::modbus::Register16Controller::setValue ( qreal value )

◆ setValueScale()

void cutehmi::modbus::Register16Controller::setValueScale ( qreal valueScale )

◆ timerEvent()

void cutehmi::modbus::Register16Controller::timerEvent ( QTimerEvent * event )

overrideprotectedvirtual

Reimplemented from QObject.

◆ value()

qreal cutehmi::modbus::Register16Controller::value ( ) const

◆ valueChanged

void cutehmi::modbus::Register16Controller::valueChanged ( )

signal

◆ valueFailed

void cutehmi::modbus::Register16Controller::valueFailed ( )

signal

◆ valueMismatch

void cutehmi::modbus::Register16Controller::valueMismatch ( )

signal

◆ valueScale()

qreal cutehmi::modbus::Register16Controller::valueScale ( ) const

◆ valueScaleChanged

void cutehmi::modbus::Register16Controller::valueScaleChanged ( )

signal

◆ valueUpdated

void cutehmi::modbus::Register16Controller::valueUpdated ( )

signal

◆ valueWritten

void cutehmi::modbus::Register16Controller::valueWritten ( )

signal

◆ writeRegisterFunction()

virtual AbstractDevice::Function cutehmi::modbus::Register16Controller::writeRegisterFunction ( ) const

protectedpure virtual

Implemented in cutehmi::modbus::HoldingRegisterController, and cutehmi::modbus::InputRegisterController.

◆ writeValue

void cutehmi::modbus::Register16Controller::writeValue ( )

slot

Friends And Related Function Documentation

◆ internal::RegisterControllerMixin< Register16Controller >

friend class internal::RegisterControllerMixin< Register16Controller >

friend

Member Data Documentation

◆ INITIAL_ENCODING

constexpr Register16Controller::Encoding cutehmi::modbus::Register16Controller::INITIAL_ENCODING = UINT16

staticconstexpr

◆ INITIAL_VALUE

constexpr qreal cutehmi::modbus::Register16Controller::INITIAL_VALUE = 0.0

staticconstexpr

◆ INITIAL_VALUE_SCALE

constexpr qreal cutehmi::modbus::Register16Controller::INITIAL_VALUE_SCALE = 1.0

staticconstexpr

Property Documentation

◆ encoding

Register16Controller::Encoding cutehmi::modbus::Register16Controller::encoding

readwrite

◆ value

qreal cutehmi::modbus::Register16Controller::value

readwrite

◆ valueScale

qreal cutehmi::modbus::Register16Controller::valueScale

readwrite

Public Types

Public Slots

Signals

Public Member Functions

Static Public Attributes

Protected Slots

Protected Member Functions

Properties

Friends

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ Encoding

Constructor & Destructor Documentation

◆ Register16Controller()

◆ ~Register16Controller()

Member Function Documentation

◆ bytes()

◆ encoding()

◆ encodingChanged

◆ onDeviceDestroyed()

◆ onRequestCompleted

◆ readRegistersFunction()

◆ registerAt()

◆ requestWriteRegister()

◆ resetRegister

◆ setEncoding()

◆ setValue()

◆ setValueScale()

◆ timerEvent()

◆ value()

◆ valueChanged

◆ valueFailed

◆ valueMismatch

◆ valueScale()

◆ valueScaleChanged

◆ valueUpdated

◆ valueWritten

◆ writeRegisterFunction()

◆ writeValue

Friends And Related Function Documentation

◆ internal::RegisterControllerMixin< Register16Controller >

Member Data Documentation

◆ INITIAL_ENCODING

◆ INITIAL_VALUE

◆ INITIAL_VALUE_SCALE

Property Documentation

◆ encoding

◆ value

◆ valueScale
