Dummy client. More...

#include <cutehmi/modbus/DummyClient.hpp>

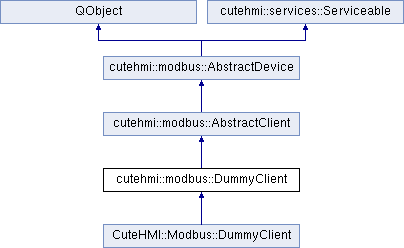

Inheritance diagram for cutehmi::modbus::DummyClient:

Public Slots
void	open () override

void	close () override

Public Slots inherited from cutehmi::modbus::AbstractDevice
virtual void	open ()=0

virtual void	close ()=0

Signals
void	connectLatencyChanged ()

void	disconnectLatencyChanged ()

void	latencyChanged ()

Signals inherited from cutehmi::modbus::AbstractClient
void	pollingIntervalChanged ()

void	pollingTaskIntervalChanged ()

Signals inherited from cutehmi::modbus::AbstractDevice
void	errored (cutehmi::InplaceError error)

void	stateChanged ()

void	readyChanged ()

void	maxReadCoilsChanged ()

void	maxWriteCoilsChanged ()

void	maxReadDiscreteInputsChanged ()

void	maxWriteDiscreteInputsChanged ()

void	maxReadHoldingRegistersChanged ()

void	maxWriteHoldingRegistersChanged ()

void	maxReadInputRegistersChanged ()

void	maxWriteInputRegistersChanged ()

void	maxRequestsChanged ()

void	requestCompleted (QJsonObject request, QJsonObject reply)

Public Member Functions
	DummyClient (QObject *parent=nullptr)

	~DummyClient () override

int	connectLatency () const

void	setConnectLatency (int connectLatency)

int	disconnectLatency () const

void	setDisconnectLatency (int disconnectLatency)

int	latency () const

void	setLatency (int latency)

Public Member Functions inherited from cutehmi::modbus::AbstractClient
int	pollingInterval () const

void	setPollingInterval (int interval)

int	pollingTaskInterval () const

void	setPollingTaskInterval (int interval)

std::unique_ptr< ServiceStatuses >	configureStarting (QState *starting) override

std::unique_ptr< ServiceStatuses >	configureStarted (QState active, const QState idling, const QState *yielding) override

std::unique_ptr< ServiceStatuses >	configureStopping (QState *stopping) override

std::unique_ptr< ServiceStatuses >	configureBroken (QState *broken) override

std::unique_ptr< ServiceStatuses >	configureRepairing (QState *repairing) override

std::unique_ptr< ServiceStatuses >	configureEvacuating (QState *evacuating) override

std::unique_ptr< QAbstractTransition >	transitionToStarted () const override

std::unique_ptr< QAbstractTransition >	transitionToStopped () const override

std::unique_ptr< QAbstractTransition >	transitionToBroken () const override

std::unique_ptr< QAbstractTransition >	transitionToYielding () const override

std::unique_ptr< QAbstractTransition >	transitionToIdling () const override

Public Member Functions inherited from cutehmi::modbus::AbstractDevice
State	state () const

bool	ready () const
	Get readiness status. More...

int	maxReadCoils () const

void	setMaxReadCoils (int maxReadCoils)

int	maxWriteCoils () const

void	setMaxWriteCoils (int maxWriteCoils)

int	maxReadDiscreteInputs () const

void	setMaxReadDiscreteInputs (int maxReadDiscreteInputs)

int	maxWriteDiscreteInputs () const

void	setMaxWriteDiscreteInputs (int maxWriteDiscreteInputs)

int	maxReadHoldingRegisters () const

void	setMaxReadHoldingRegisters (int maxReadHoldingRegisters)

int	maxWriteHoldingRegisters () const

void	setMaxWriteHoldingRegisters (int maxWriteHoldingRegisters)

int	maxReadInputRegisters () const

void	setMaxReadInputRegisters (int maxReadInputRegisters)

int	maxWriteInputRegisters () const

void	setMaxWriteInputRegisters (int maxWriteInputRegisters)

int	maxRequests () const

void	setMaxRequests (int maxRequests)

Coil *	coilAt (quint16 address)

DiscreteInput *	discreteInputAt (quint16 address)

HoldingRegister *	holdingRegisterAt (quint16 address)

InputRegister *	inputRegisterAt (quint16 address)

Q_INVOKABLE void	requestReadCoils (quint16 address, quint16 amount=1, QUuid *requestId=nullptr)
	Read coils request. More...

Q_INVOKABLE void	requestWriteCoil (quint16 address, bool value, QUuid *requestId=nullptr)
	Write coils request. More...

Q_INVOKABLE void	requestWriteMultipleCoils (quint16 address, QJsonArray values, QUuid *requestId=nullptr)
	Write multiple coils request. More...

Q_INVOKABLE void	requestReadDiscreteInputs (quint16 address, quint16 amount=1, QUuid *requestId=nullptr)
	Read discrete inputs request. More...

Q_INVOKABLE void	requestWriteDiscreteInput (quint16 address, bool value, QUuid *requestId=nullptr)
	Write discrete input request. More...

Q_INVOKABLE void	requestWriteMultipleDiscreteInputs (quint16 address, QJsonArray values, QUuid *requestId=nullptr)
	Write multiple discrete inputs request. More...

Q_INVOKABLE void	requestReadHoldingRegisters (quint16 address, quint16 amount=1, QUuid *requestId=nullptr)
	Read holding registers request. More...

Q_INVOKABLE void	requestWriteHoldingRegister (quint16 address, quint16 value, QUuid *requestId=nullptr)
	Write holding register request. More...

Q_INVOKABLE void	requestWriteMultipleHoldingRegisters (quint16 address, QJsonArray values, QUuid *requestId=nullptr)
	Write multiple holding registers request. More...

Q_INVOKABLE void	requestReadInputRegisters (quint16 address, quint16 amount=1, QUuid *requestId=nullptr)
	Read input registers request. More...

Q_INVOKABLE void	requestWriteInputRegister (quint16 address, quint16 value, QUuid *requestId=nullptr)
	Write input register request. More...

Q_INVOKABLE void	requestWriteMultipleInputRegisters (quint16 address, QJsonArray values, QUuid *requestId=nullptr)
	Write multiple input registers request. More...

Q_INVOKABLE void	requestDiagnostics (DiagnosticsSubfunction subfunction, quint16 data, QUuid *requestId=nullptr)
	Diagonistics request. More...

Q_INVOKABLE void	requestReadExceptionStatus (QUuid *requestId=nullptr)
	Report slave id request. More...

Q_INVOKABLE void	requestFetchCommEventCounter (QUuid *requestId=nullptr)
	Report slave id request. More...

Q_INVOKABLE void	requestFetchCommEventLog (QUuid *requestId=nullptr)
	Report slave id request. More...

Q_INVOKABLE void	requestReportSlaveId (QUuid *requestId=nullptr)
	Report slave id request. More...

Q_INVOKABLE void	requestMaskWriteHoldingRegister (quint16 address, quint16 andMask, quint16 orMask, QUuid *requestId=nullptr)
	Mask write holding register request. More...

Q_INVOKABLE void	requestReadWriteMultipleHoldingRegisters (quint16 readAddress, quint16 amount, quint16 writeAddress, QJsonArray values, QUuid *requestId=nullptr)
	Read/write multiple holding registers request. More...

Q_INVOKABLE void	requestReadFIFOQueue (quint16 address, QUuid *requestId=nullptr)
	Read FIFO queue request. More...

Q_INVOKABLE QJsonObject	readFileRecordSubrequest (quint16 file, quint16 address, quint16 amount)
	Generate read file record subrequest. More...

Q_INVOKABLE void	requestReadFileRecord (QJsonArray subrequests, QUuid *requestId=nullptr)
	Read file record request. More...

Q_INVOKABLE QJsonObject	writeFileRecordSubrequest (quint16 file, quint16 address, QJsonArray values)
	Generate write file record subrequest. More...

Q_INVOKABLE void	requestWriteFileRecord (QJsonArray subrequests, QUuid *requestId=nullptr)
	Write file record request. More...

Q_INVOKABLE void	request (Function function, QJsonObject payload, QUuid *requestId=nullptr)
	Modbus function request. More...

Public Member Functions inherited from QObject
virtual const QMetaObject *	metaObject () const const

virtual void *	qt_metacast (const char *)

virtual int	qt_metacall (QMetaObject::Call, int, void **)

	QObject (QObject *parent)

virtual	~QObject ()

virtual bool	event (QEvent *e)

virtual bool	eventFilter (QObject watched, QEvent event)

QString	objectName () const const

void	setObjectName (const QString &name)

bool	isWidgetType () const const

bool	isWindowType () const const

bool	signalsBlocked () const const

bool	blockSignals (bool block)

QThread *	thread () const const

void	moveToThread (QThread *targetThread)

int	startTimer (int interval, Qt::TimerType timerType)

int	startTimer (std::chrono::milliseconds time, Qt::TimerType timerType)

void	killTimer (int id)

T	findChild (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QString &name, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegExp &regExp, Qt::FindChildOptions options) const const

QList< T >	findChildren (const QRegularExpression &re, Qt::FindChildOptions options) const const

const QObjectList &	children () const const

void	setParent (QObject *parent)

void	installEventFilter (QObject *filterObj)

void	removeEventFilter (QObject *obj)

QMetaObject::Connection	connect (const QObject sender, const char signal, const char *method, Qt::ConnectionType type) const const

bool	disconnect (const char signal, const QObject receiver, const char *method) const const

bool	disconnect (const QObject receiver, const char method) const const

void	dumpObjectTree ()

void	dumpObjectInfo ()

void	dumpObjectTree () const const

void	dumpObjectInfo () const const

bool	setProperty (const char *name, const QVariant &value)

QVariant	property (const char *name) const const

QList< QByteArray >	dynamicPropertyNames () const const

void	destroyed (QObject *obj)

void	objectNameChanged (const QString &objectName)

QObject *	parent () const const

bool	inherits (const char *className) const const

void	deleteLater ()

Public Member Functions inherited from cutehmi::services::Serviceable
	Serviceable ()=default

Static Public Attributes
static constexpr int	INITIAL_OPEN_LATENCY = internal::DummyClientConfig::INITIAL_OPEN_LATENCY

static constexpr int	INITIAL_CLOSE_LATENCY = internal::DummyClientConfig::INITIAL_CLOSE_LATENCY

static constexpr int	INITIAL_LATENCY = internal::DummyClientConfig::INITIAL_LATENCY

Static Public Attributes inherited from cutehmi::modbus::AbstractClient
static constexpr int	INITIAL_POLLING_INTERVAL = 250

static constexpr int	INITIAL_POLLING_TASK_INTERVAL = 10

Static Public Attributes inherited from cutehmi::modbus::AbstractDevice
static constexpr quint16	MIN_ADDRESS = 0

static constexpr quint16	MAX_ADDRESS = 65535

static constexpr int	INITIAL_MAX_READ_COILS = 16

static constexpr int	INITIAL_MAX_WRITE_COILS = 16

static constexpr int	INITIAL_MAX_READ_DISCRETE_INPUTS = 16

static constexpr int	INITIAL_MAX_WRITE_DISCRETE_INPUTS = 16

static constexpr int	INITIAL_MAX_READ_HOLDING_REGISTERS = 16

static constexpr int	INITIAL_MAX_WRITE_HOLDING_REGISTERS = 16

static constexpr int	INITIAL_MAX_READ_INPUT_REGISTERS = 16

static constexpr int	INITIAL_MAX_WRITE_INPUT_REGISTERS = 16

static constexpr int	INITIAL_MAX_REQUESTS = 1000

static constexpr State	INITIAL_STATE = CLOSED

static constexpr bool	INITIAL_READY = false

static constexpr int	MAX_READ_TCP_COILS = 1976
	Maximal amount of coils that can be read at once through TCP. More...

static constexpr int	MAX_READ_RTU_COILS = 2008
	Maximal amount of coils that can be read at once through RTU. More...

static constexpr int	MAX_WRITE_TCP_COILS = 1944
	Maximal amount of coils that can be written at once through TCP. More...

static constexpr int	MAX_WRITE_RTU_COILS = 1976
	Maximal amount of coils that can be written at once through RTU. More...

static constexpr int	MAX_READ_TCP_DISCRETE_INPUTS = 1976
	Maximal amount of discrete inputs that can be read at once through TCP. More...

static constexpr int	MAX_READ_RTU_DISCRETE_INPUTS = 2008
	Maximal amount of discrete inputs that can be read at once through RTU. More...

static constexpr int	MAX_READ_TCP_HOLDING_REGISTERS = 123
	Maximal amount of holding registers that can be read at once through TCP. More...

static constexpr int	MAX_READ_RTU_HOLDING_REGISTERS = 125
	Maximal amount of holding registers that can be read at once through RTU. More...

static constexpr int	MAX_WRITE_TCP_HOLDING_REGISTERS = 123
	Maximal amount of holding registers that can be written at once through TCP. More...

static constexpr int	MAX_WRITE_RTU_HOLDING_REGISTERS = 125
	Maximal amount of holding registers that can be written at once through RTU. More...

static constexpr int	MAX_READ_TCP_INPUT_REGISTERS = 123
	Maximal amount of input registers that can be read at once through TCP. More...

static constexpr int	MAX_READ_RTU_INPUT_REGISTERS = 125
	Maximal amount of input registers that can be read at once through RTU. More...

Properties
int	connectLatency

int	disconnectLatency

int	latency

Properties inherited from cutehmi::modbus::AbstractClient
int	pollingInterval

int	pollingTaskInterval

Properties inherited from cutehmi::modbus::AbstractDevice
State	state

bool	ready

int	maxReadCoils

int	maxWriteCoils

int	maxReadDiscreteInputs

int	maxWriteDiscreteInputs

int	maxReadHoldingRegisters

int	maxWriteHoldingRegisters

int	maxReadInputRegisters

int	maxWriteInputRegisters

int	maxRequests

Properties inherited from QObject
	objectName

Additional Inherited Members
Public Types inherited from cutehmi::modbus::AbstractDevice
enum	State { OPENING, OPENED, CLOSING, CLOSED }

enum	Function { FUNCTION_INVALID = QModbusPdu::Invalid, FUNCTION_READ_COILS = QModbusPdu::ReadCoils, FUNCTION_READ_DISCRETE_INPUTS = QModbusPdu::ReadDiscreteInputs, FUNCTION_READ_HOLDING_REGISTERS = QModbusPdu::ReadHoldingRegisters, FUNCTION_READ_INPUT_REGISTERS = QModbusPdu::ReadInputRegisters, FUNCTION_WRITE_COIL = QModbusPdu::WriteSingleCoil, FUNCTION_WRITE_HOLDING_REGISTER = QModbusPdu::WriteSingleRegister, FUNCTION_READ_EXCEPTION_STATUS = QModbusPdu::ReadExceptionStatus, FUNCTION_DIAGNOSTICS = QModbusPdu::Diagnostics, FUNCTION_FETCH_COMM_EVENT_COUNTER = QModbusPdu::GetCommEventCounter, FUNCTION_FETCH_COMM_EVENT_LOG = QModbusPdu::GetCommEventLog, FUNCTION_WRITE_MULTIPLE_COILS = QModbusPdu::WriteMultipleCoils, FUNCTION_WRITE_MULTIPLE_HOLDING_REGISTERS = QModbusPdu::WriteMultipleRegisters, FUNCTION_REPORT_SLAVE_ID = QModbusPdu::ReportServerId, FUNCTION_READ_FILE_RECORD = QModbusPdu::ReadFileRecord, FUNCTION_WRITE_FILE_RECORD = QModbusPdu::WriteFileRecord, FUNCTION_MASK_WRITE_HOLDING_REGISTER = QModbusPdu::MaskWriteRegister, FUNCTION_READ_WRITE_MULTIPLE_HOLDING_REGISTERS = QModbusPdu::ReadWriteMultipleRegisters, FUNCTION_READ_FIFO_QUEUE = QModbusPdu::ReadFifoQueue, FUNCTION_UNDEFINED = QModbusPdu::UndefinedFunctionCode, FUNCTION_WRITE_DISCRETE_INPUT, FUNCTION_WRITE_MULTIPLE_DISCRETE_INPUTS, FUNCTION_WRITE_INPUT_REGISTER, FUNCTION_WRITE_MULTIPLE_INPUT_REGISTERS, FUNCTION_RAW }

enum	DiagnosticsSubfunction : quint16 { DIAGNOSTICS_RETURN_QUERY_DATA = 0x00, DIAGNOSTICS_RESTART_COMM_OPTION = 0x01, DIAGNOSTICS_RETURN_DIAGNOSTICS_REGISTER = 0x02, DIAGNOSTICS_CHANGE_ASCII_INPUT_DELIMITER = 0x03, DIAGNOSTICS_FORCE_LISTEN_ONLY_MODE = 0x04, DIAGNOSTICS_CLEAR_COUNTERS_AND_DIAGNOSTICS_REGISTER = 0x0A, DIAGNOSTICS_RETURN_BUS_MESSAGE_COUNT = 0x0B, DIAGNOSTICS_RETURN_BUS_COMM_ERROR_COUNT = 0x0C, DIAGNOSTICS_RETURN_BUS_EXCEPTION_ERROR_COUNT = 0x0D, DIAGNOSTICS_RETURN_SLAVE_MESSAGE_COUNT = 0x0E, DIAGNOSTICS_RETURN_SLAVE_NO_RESPONSE_COUNT = 0x0F, DIAGNOSTICS_RETURN_SLAVE_NAK_COUNT = 0x10, DIAGNOSTICS_RETURN_SLAVE_BUSY_COUNT = 0x11, DIAGNOSTICS_RETURN_BUS_CHARACTER_OVERRUN_COUNT = 0x12, DIAGNOSTICS_RETURN_IOP_OVERRUN_COUNT = 0x13, DIAGNOSTICS_CLEAR_OVERRUN_COUNTER_AND_FLAG = 0x14, DIAGNOSTICS_GET_CLEAR_MODBUS_PLUS_STATISTICS = 0x15 }

Public Types inherited from cutehmi::services::Serviceable
typedef QHash< QState *, QString >	ServiceStatuses

Static Public Member Functions inherited from QObject
QString	tr (const char sourceText, const char disambiguation, int n)

QString	trUtf8 (const char sourceText, const char disambiguation, int n)

QMetaObject::Connection	connect (const QObject sender, const char signal, const QObject receiver, const char method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method, Qt::ConnectionType type)

QMetaObject::Connection	connect (const QObject *sender, PointerToMemberFunction signal, Functor functor)

QMetaObject::Connection	connect (const QObject sender, PointerToMemberFunction signal, const QObject context, Functor functor, Qt::ConnectionType type)

bool	disconnect (const QObject sender, const char signal, const QObject receiver, const char method)

bool	disconnect (const QObject sender, const QMetaMethod &signal, const QObject receiver, const QMetaMethod &method)

bool	disconnect (const QMetaObject::Connection &connection)

bool	disconnect (const QObject sender, PointerToMemberFunction signal, const QObject receiver, PointerToMemberFunction method)

Protected Types inherited from cutehmi::modbus::AbstractDevice
typedef internal::RegisterTraits< internal::Coil >::Container	CoilDataContainer

typedef internal::RegisterTraits< internal::DiscreteInput >::Container	DiscreteInputDataContainer

typedef internal::RegisterTraits< internal::HoldingRegister >::Container	HoldingRegisterDataContainer

typedef internal::RegisterTraits< internal::InputRegister >::Container	InputRegisterDataContainer

Protected Slots inherited from cutehmi::modbus::AbstractClient
virtual void	onStateChanged ()

void	poll ()

void	pollingTask ()

Protected Slots inherited from cutehmi::modbus::AbstractDevice
void	setState (State state)

void	setReady (bool ready)

void	handleError (cutehmi::InplaceError error)

Protected Member Functions inherited from cutehmi::modbus::AbstractClient
	AbstractClient (QObject *parent=nullptr)

void	handleRequest (const QJsonObject &request) override
	Handle request. More...

void	handleReply (QUuid requestId, QJsonObject reply) override
	Reply handler. More...

void	pollingRequested ()

void	pollingFinished ()

void	pollingTaskRequested ()

void	pollingTaskFinished ()

Protected Member Functions inherited from cutehmi::modbus::AbstractDevice
	AbstractDevice (QObject *parent=nullptr)

	~AbstractDevice () override
	Destructor. More...

const CoilDataContainer &	coilData () const

CoilDataContainer &	coilData ()

const DiscreteInputDataContainer &	discreteInputData () const

DiscreteInputDataContainer &	discreteInputData ()

const HoldingRegisterDataContainer &	holdingRegisterData () const

HoldingRegisterDataContainer &	holdingRegisterData ()

const InputRegisterDataContainer &	inputRegisterData () const

InputRegisterDataContainer &	inputRegisterData ()

QJsonObject	pendingRequest (QUuid requestId) const

QJsonObject	takePendingRequest (QUuid requestId)

void	stopped ()

void	started ()

Protected Member Functions inherited from QObject
QObject *	sender () const const

int	senderSignalIndex () const const

int	receivers (const char *signal) const const

bool	isSignalConnected (const QMetaMethod &signal) const const

virtual void	timerEvent (QTimerEvent *event)

virtual void	childEvent (QChildEvent *event)

virtual void	customEvent (QEvent *event)

virtual void	connectNotify (const QMetaMethod &signal)

virtual void	disconnectNotify (const QMetaMethod &signal)

Protected Member Functions inherited from cutehmi::services::Serviceable
virtual	~Serviceable ()=default

	Serviceable (const Serviceable &other)=default

Serviceable &	operator= (const Serviceable &other)=default

Protected Attributes inherited from cutehmi::modbus::AbstractClient
CUTEHMI_PROTECTED_SIGNALS	__pad0__: void requestReceived(QJsonObject request)

Protected Attributes inherited from cutehmi::modbus::AbstractDevice
CUTEHMI_PROTECTED_SIGNALS	__pad0__: void broke()

Detailed Description

Dummy client.

Dummy client provides implementation of fake Modbus master (client) that connects to imaginary Modbus slave (server). Contrary to real client it can be forced to write to memory regions specified by Modbus protocol as read-only (discrete inputs and input registers). This class is useful when prototyping and testing behavior of client application as it can also emulate latency and it does not require running Modbus slave (server) to work with.

Constructor & Destructor Documentation

◆ DummyClient()

cutehmi::modbus::DummyClient::DummyClient ( QObject * parent = nullptr )

◆ ~DummyClient()

cutehmi::modbus::DummyClient::~DummyClient ( )

override

Member Function Documentation

◆ close

void cutehmi::modbus::DummyClient::close ( )

overrideslot

◆ connectLatency()

int cutehmi::modbus::DummyClient::connectLatency ( ) const

◆ connectLatencyChanged

void cutehmi::modbus::DummyClient::connectLatencyChanged ( )

signal

◆ disconnectLatency()

int cutehmi::modbus::DummyClient::disconnectLatency ( ) const

◆ disconnectLatencyChanged

void cutehmi::modbus::DummyClient::disconnectLatencyChanged ( )

signal

◆ latency()

int cutehmi::modbus::DummyClient::latency ( ) const

◆ latencyChanged

void cutehmi::modbus::DummyClient::latencyChanged ( )

signal

◆ open

void cutehmi::modbus::DummyClient::open ( )

overrideslot

◆ setConnectLatency()

void cutehmi::modbus::DummyClient::setConnectLatency ( int connectLatency )

◆ setDisconnectLatency()

void cutehmi::modbus::DummyClient::setDisconnectLatency ( int disconnectLatency )

◆ setLatency()

void cutehmi::modbus::DummyClient::setLatency ( int latency )

Member Data Documentation

◆ INITIAL_CLOSE_LATENCY

constexpr int cutehmi::modbus::DummyClient::INITIAL_CLOSE_LATENCY = internal::DummyClientConfig::INITIAL_CLOSE_LATENCY

staticconstexpr

◆ INITIAL_LATENCY

constexpr int cutehmi::modbus::DummyClient::INITIAL_LATENCY = internal::DummyClientConfig::INITIAL_LATENCY

staticconstexpr

◆ INITIAL_OPEN_LATENCY

constexpr int cutehmi::modbus::DummyClient::INITIAL_OPEN_LATENCY = internal::DummyClientConfig::INITIAL_OPEN_LATENCY

staticconstexpr

Property Documentation

◆ connectLatency

int cutehmi::modbus::DummyClient::connectLatency

readwrite

◆ disconnectLatency

int cutehmi::modbus::DummyClient::disconnectLatency

readwrite

◆ latency

int cutehmi::modbus::DummyClient::latency

readwrite

Public Slots

Signals

Public Member Functions

Static Public Attributes

Properties

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ DummyClient()

◆ ~DummyClient()

Member Function Documentation

◆ close

◆ connectLatency()

◆ connectLatencyChanged

◆ disconnectLatency()

◆ disconnectLatencyChanged

◆ latency()

◆ latencyChanged

◆ open

◆ setConnectLatency()

◆ setDisconnectLatency()

◆ setLatency()

Member Data Documentation

◆ INITIAL_CLOSE_LATENCY

◆ INITIAL_LATENCY

◆ INITIAL_OPEN_LATENCY

Property Documentation

◆ connectLatency

◆ disconnectLatency

◆ latency
